Husqvarna 555RXT - Throttle Controls

Name: Husqvarna 555RXT - Throttle Controls
SKU: 555rxt_throttle_controls-group
Price: 1.3 GBP
Availability: InStock

Description

Husqvarna 555RXT

Model Year -

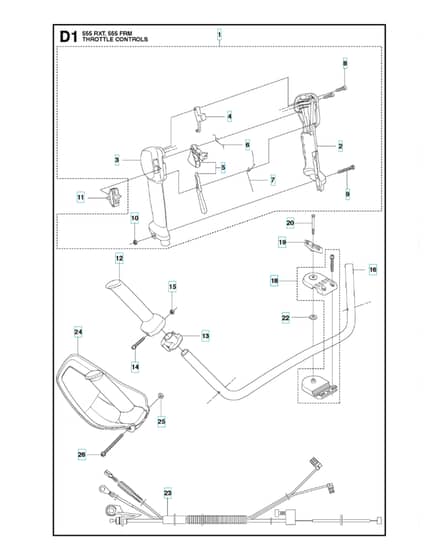

Throttle Controls - Parts Diagram

	Part No.	Details
1	HV504 20 98-04 Available to backorder	Throttle Handle Assyincl. Pos. 2-10	£48.52 £40.43
2	HV537 18 08-11 Available to backorder	Handle Half	£27.18 £22.65
3	HV537 18 07-11 Available to backorder	Handle Half	£26.54 £22.12
5	HV506 49 77-01 Available to backorder	Throttle Controlkit	£8.40 £7.00
6	HV537 17 42-01 Available to backorder	Spring Throttle Trig	£3.28 £2.73
7	HV537 17 43-01 Available to backorder	Spring	£3.36 £2.80
8	HV503 21 66-18 Available to backorder	Screw Ihsct	£1.82 £1.52
11	HV537 41 90-01 In stock	Switch	£15.48 £12.90
12	HV537 17 28-03 Available to backorder	Handle	£13.58 £11.32
13	HV537 17 29-02 Available to backorder	Bracket	£7.12 £5.93
14	HV503 20 02-45 Available to backorder	Screw Ihscfm	£2.34 £1.95
15	HV731 23 14-05 Available to backorder	Hexagon Nut	£1.56 £1.30
16	HV505 43 33-03 Available to backorder	Handlebar	£49.18 £40.98
18	HV596 28 33-01 Available to backorder	Handlebar Bracket	£18.92 £15.77
18	HV595 30 36-01 Available to backorder	Handlebar Brackets/N From 20173300001 Up To 20181100180	£32.54 £27.12
19	HV502 20 38-01 Available to backorder	Knob	£7.12 £5.93
20	HV725 23 83-81 Available to backorder	Screw Ehhm	£5.32 £4.43
22	HV502 28 21-01 Available to backorder	Washer	£2.34 £1.95
23	HV544 20 31-01 Available to backorder	Wiringrxt. Frm	£54.36 £45.30
24	HV577 36 79-01 Available to backorder	Hand Guard Assyfrm	£36.86 £30.72
25	HV503 22 10-13 Available to backorder	Hexagon Nut	£2.06 £1.72
26	HV503 20 29-70 Available to backorder	Screw Ihscfm	£3.62 £3.02
