Husqvarna 555FRM - Carburetor

Name: Husqvarna 555FRM - Carburetor
SKU: 555frm_carburetor-group
Price: 1.07 GBP
Availability: InStock

Part No. 555frm_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 555FRM

Model Year -

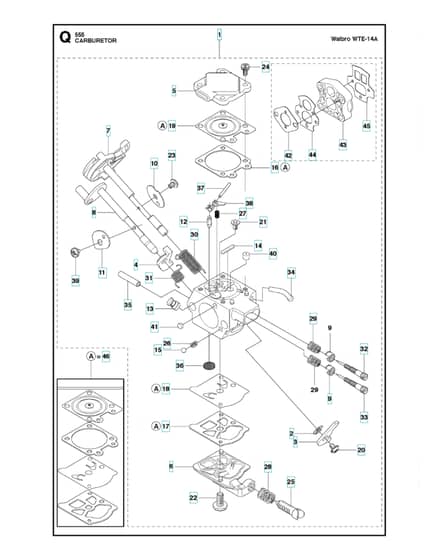

Carburetor - Parts Diagram

	Part No.	Details
1	HV586 15 40-01 Available to backorder	Carburettor Kits/N Up To – 20130600067	£126.36 £105.30
1	HV586 10 88-01 Available to backorder	Carburettors/N From 20130600067 –	£126.36 £105.30
5	HV574 35 81-01 Available to backorder	Cover	£9.85 £8.21
6	HV503 58 43-01 Available to backorder	Cover	£13.27 £11.06
7	HV544 04 36-01 Available to backorder	Shaft	£37.37 £31.14
12	HV503 56 34-01 Available to backorder	Needle Valve	£9.16 £7.63
13	HV502 84 68-01 Available to backorder	Nozzle Assy	£11.26 £9.38
15	HV501 46 85-01 Available to backorder	Ball	£4.64 £3.87
16	HV504 35 09-06 Available to backorder	Gasket	£4.39 £3.66
17	HV504 13 09-06 Available to backorder	Gasket	£4.63 £3.86

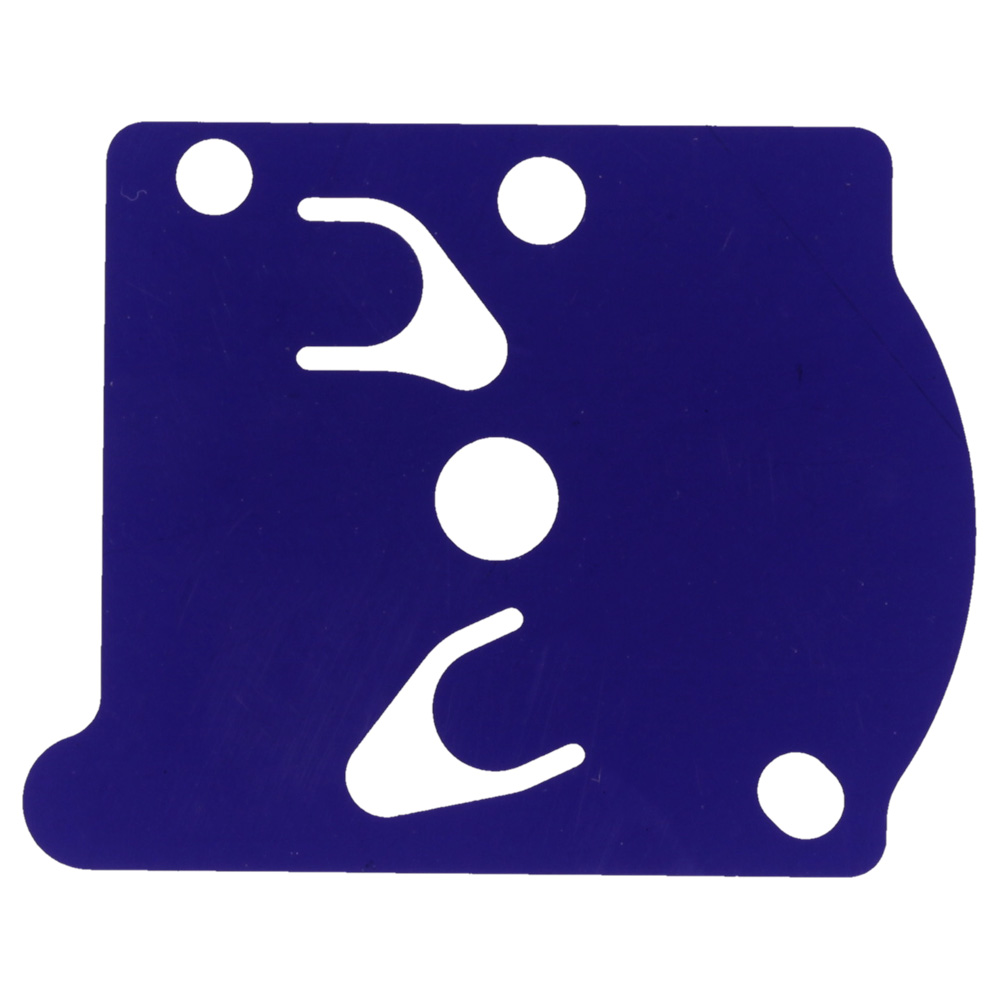

18	HV577 01 66-01 In stock	Diaphragm	£8.86 £7.38
19	HV580 80 42-01 Available to backorder	Diaphragm	£21.10 £17.58
20	HV501 46 87-01 Available to backorder	Screw	£1.28 £1.07
21	HV502 84 71-01 Available to backorder	Screw	£1.56 £1.30
24	HV537 00 31-01 Available to backorder	Screw	£1.34 £1.12
25	HV537 40 82-01 Available to backorder	Screw	£6.06 £5.05
26	HV501 46 84-01 Available to backorder	Spring	£2.88 £2.40
27	HV501 79 59-01 Available to backorder	Spring	£3.34 £2.78
28	HV501 66 78-01 Available to backorder	Spring	£3.32 £2.77
33	HV502 84 73-01 Available to backorder	Needle	£9.85 £8.21
36	HV501 66 61-01 Available to backorder	Screen	£5.21 £4.34
37	HV505 52 01-25 Available to backorder	Pin	£4.52 £3.77
38	HV502 84 74-01 Available to backorder	Lever	£4.52 £3.77
39	HV544 11 15-01 Available to backorder	Screw	£1.28 £1.07
46	HV515 99 96-01 Available to backorder	Gasket Kit	£12.97 £10.81
