Husqvarna 555 - Chain Brake & Clutch Cover

Husqvarna 555 - Chain Brake & Clutch Cover

Part No. 555_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 555 - Chain Brake & Clutch Cover

Husqvarna 555 - Chain Brake & Clutch Cover

Description

Husqvarna 555

Model Year -

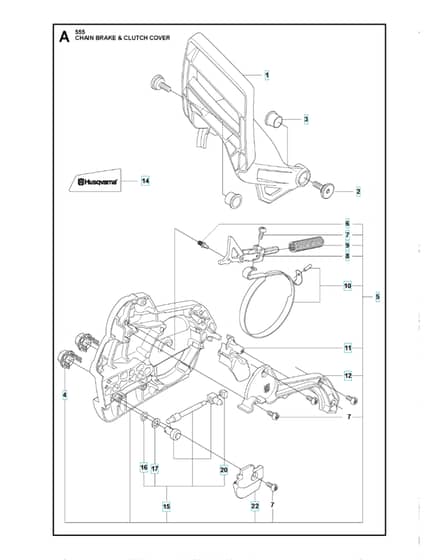

Chain Brake & Clutch Cover - Parts Diagram

Ref.		Img.	Part No.	Details

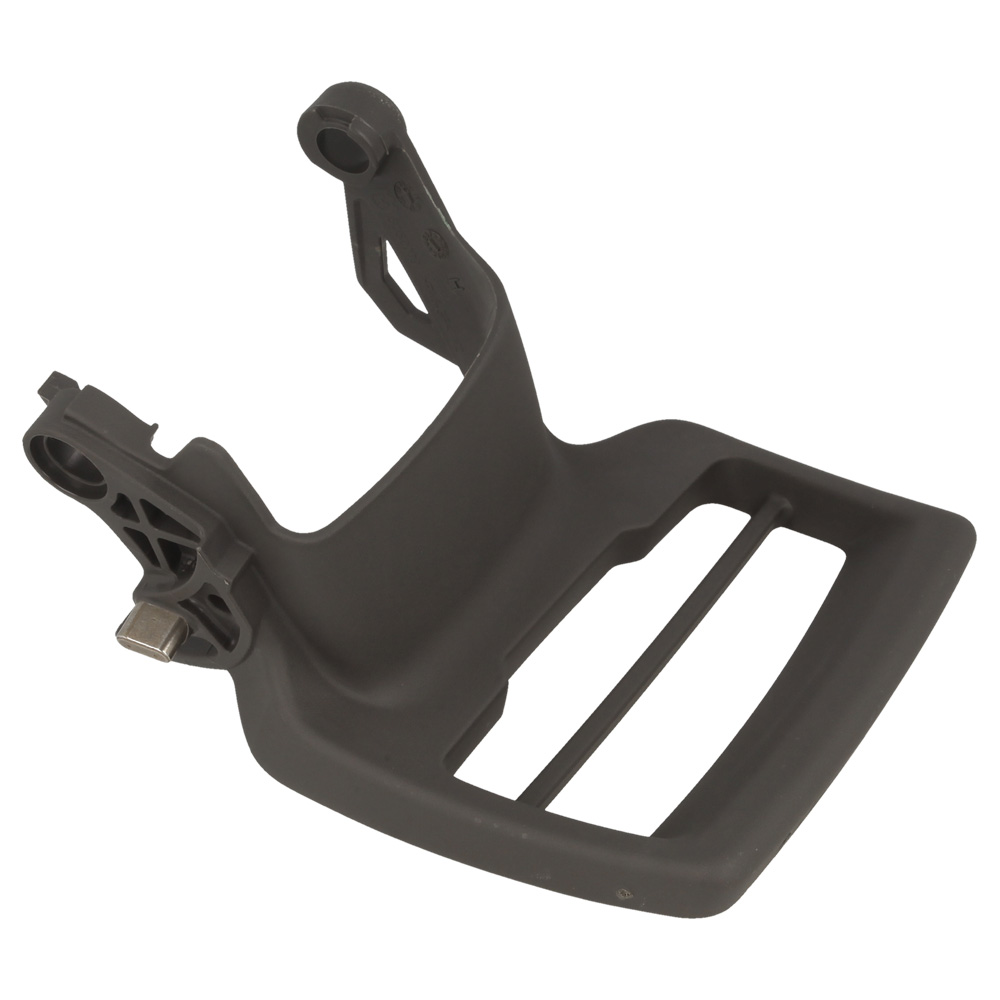

	1		HV505 20 09-02 In stock	Hand Guard		£26.17 £21.81
	2		HV526 83 45-01 Available to backorder	Screw		£1.67 £1.39
	3		HV577 78 02-01 Available to backorder	Bushing		£6.17 £5.14
	4		HV505 19 73-01 In stock	Nut		£4.48 £3.73
	5		HV501 84 61-04 Available to backorder	Clutch Cover Assy		£110.28 £91.90
	6		HV503 75 18-01 Available to backorder	Pin		£1.45 £1.21
	7		HV526 22 18-01 Available to backorder	Screw Citxpant		£1.24 £1.03
	8		HV505 19 93-01 Available to backorder	Knee Joint Assy		£28.20 £23.50
	9		HV503 90 83-01 Available to backorder	Brake Spring		£4.86 £4.05
	10		HV505 19 95-02 In stock	Brake Band Assy		£13.73 £11.44
	11		HV505 20 16-01 Available to backorder	Guard		£9.62 £8.02
	12		HV505 19 97-03 Available to backorder	Cover		£8.34 £6.95
	14		HV523 05 80-01 Available to backorder	Label- Up To S/N 20202399999		£2.83 £2.36
	15		HV575 26 04-04 Available to backorder	Chain Tensioner Kit		£7.66 £6.38
	16		HV740 48 07-02 Available to backorder	O-Ring		£3.82 £3.18
	17		HV503 23 00-63 Available to backorder	Washer		£2.30 £1.92
	20		HV537 01 74-01 Available to backorder	Bearing Sleeve		£5.75 £4.79
	22		HV505 19 98-01 In stock	Chain Guide		Was £4.66 £3.88 Special Price £3.23 £2.69

Description

Husqvarna 555

Model Year -

Chain Brake & Clutch Cover - Parts Diagram
