Husqvarna 550XP Mark II - Handles Heated

Description

Husqvarna 550XP Mark II

Model Year -

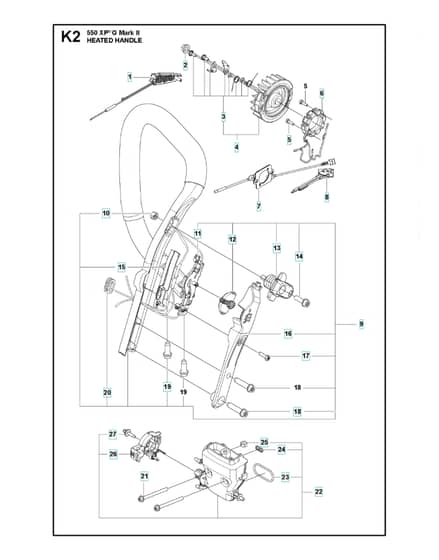

Handles Heated - Parts Diagram

	Part No.	Details
1	HV590 26 09-01 Available to backorder	Handle Insert	£62.16 £51.80
2	HV503 22 04-01 In stock	Nut	£2.05 £1.71
3	HV596 23 06-01 Available to backorder	Screw Kit	£7.06 £5.88
4	HV522 93 78-06 Available to backorder	Flywheel Assy	£82.32 £68.60
5	HV526 81 81-02 Available to backorder	Screw Itxscm	£0.95 £0.79
6	HV590 26 03-01 Available to backorder	Stator Assy	£164.04 £136.70
7	HV588 16 86-03 Available to backorder	Foil Element	£6.40 £5.33
8	HV590 68 83-01 Available to backorder	Thermostat Assy	£79.20 £66.00
9	HV582 01 49-02 Available to backorder	Handle System	£155.88 £129.90
10	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
11	HV590 20 19-01 Available to backorder	Contact Plate	£5.70 £4.75
12	HV537 25 25-01 Available to backorder	Contact Plate	£7.22 £6.02
13	HV595 30 34-01 Available to backorder	Antivibration Element	£22.09 £18.41
14	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
15	HV596 20 14-01 Available to backorder	Protection	£5.90 £4.92
16	HV590 20 18-01 Available to backorder	Cover	£11.38 £9.48
17	HV578 77 61-02 Available to backorder	Screw Itxpant	£3.48 £2.90
18	HV525 79 81-03 Available to backorder	Screw Itxscft	£0.95 £0.79
19	HV525 79 81-01 Available to backorder	Screw Itxscft	£0.90 £0.75
20	HV537 08 83-01 Available to backorder	Grommet	£4.50 £3.75
21	HV581 14 31-01 Available to backorder	Screw Itxscfm	£0.95 £0.79
22	HV589 55 07-04 Available to backorder	Filter Holder Assyblue	£54.18 £45.15
23	HV525 61 90-01 Available to backorder	Sealing	£6.67 £5.56
24	HV525 61 92-01 In stock	Sealing	£2.40 £2.00
25	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
26	HV510 01 72-02 Available to backorder	Choke Control Assy	£9.62 £8.02
27	HV505 15 62-01 Available to backorder	Screw	£1.94 £1.62
