Husqvarna 550 XP G Mark II - 967690915 - Heated Handle

Name: Husqvarna 550 XP G Mark II - 967690915 - Heated Handle
SKU: 550_XP_G_Mark_II_967690915_ML_245291_Original_20file-group
Price: 0.75 GBP
Availability: InStock

Part No. 550_XP_G_Mark_II_967690915_ML_245291_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 550 XP G Mark II - 967690915 - Heated Handle

Description

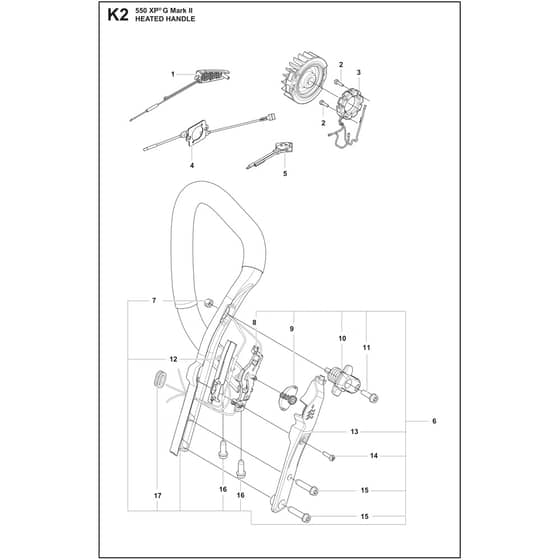

Husqvarna 550 XP G Mark II - 967690915 - Heated Handle - Parts Diagram

	Part No.	Details
1	HV590 26 09-01 Available to backorder	Handle Insert	£62.16 £51.80
2	HV526 81 81-02 Available to backorder	Screw Itxscm	£0.95 £0.79
3	HV590 26 03-01 Available to backorder	Stator Assy	£164.04 £136.70
4	HV588 16 86-03 Available to backorder	Foil Element	£6.40 £5.33
5	HV590 68 83-01 Available to backorder	Thermostat Assy	£79.20 £66.00
6	HV582 01 49-02 Available to backorder	Handle System	£155.88 £129.90
7	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
8	HV590 20 19-01 Available to backorder	Contact Plate	£5.70 £4.75
9	HV537 25 25-01 Available to backorder	Contact Plate	£7.22 £6.02
10	HV595 30 34-01 Available to backorder	Antivibration Element	£22.09 £18.41
11	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
12	HV596 20 14-01 Available to backorder	Protection	£5.90 £4.92
13	HV590 20 18-01 Available to backorder	Cover	£11.38 £9.48
14	HV578 77 61-02 Available to backorder	Screw Itxpant	£3.48 £2.90
15	HV525 79 81-03 Available to backorder	Screw Itxscft	£0.95 £0.79
16	HV525 79 81-01 Available to backorder	Screw Itxscft	£0.90 £0.75
17	HV537 08 83-01 Available to backorder	Grommet	£4.50 £3.75
