Husqvarna 550 XP G Mark II - 967690915 - Fuel Tank

Name: Husqvarna 550 XP G Mark II - 967690915 - Fuel Tank
SKU: 550_XP_G_Mark_II_967690915_KI_232114_HighResPng-group
Price: 1.04 GBP
Availability: InStock

Part No. 550_XP_G_Mark_II_967690915_KI_232114_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 550 XP G Mark II - 967690915 - Fuel Tank

Description

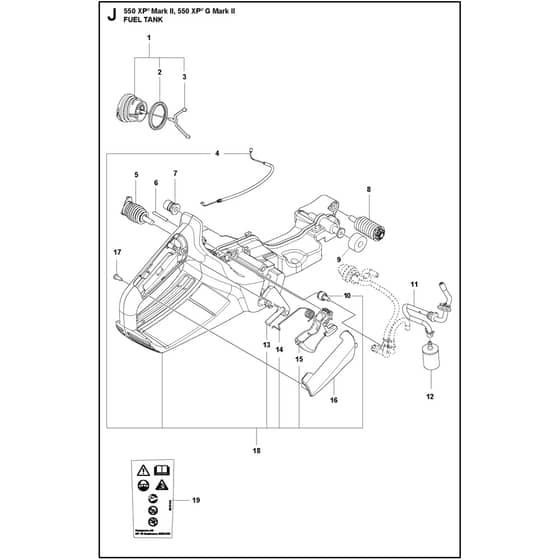

Husqvarna 550 XP G Mark II - 967690915 - Fuel Tank - Parts Diagram

	Part No.	Details
1	HV522 62 00-01 Available to backorder	Tank Cap Assy	£8.68 £7.23
2	HV537 21 50-01 Available to backorder	Gasket	£5.32 £4.43
3	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
4	HV596 55 00-01 Available to backorder	Throttle Cable Assy	£25.34 £21.12
5	HV596 88 20-02 Available to backorder	Antivibration Element	£19.97 £16.64
6	HV720 18 25-20 Available to backorder	Parallel Pin	£1.56 £1.30
7	HV501 00 76-01 Available to backorder	Support	£1.94 £1.62
8	HV590 37 74-01 Available to backorder	Antivibration Element	£20.66 £17.22
9	HV523 08 55-01 In stock	Deflection Limiter	£6.00 £5.00
10	HV501 15 29-03 Available to backorder	Tank Vent Assy	£16.94 £14.12
11	HV529 57 82-02 In stock	Fuel Hose Assy (With magnet)	£11.54 £9.62
12	HV503 44 32-03 In stock	Fuel Filter (18-40 µm (Blue))	£8.76 £7.30
13	HV544 09 98-01 Available to backorder	Throttle Lockout	£7.06 £5.88
14	HV544 09 99-01 Available to backorder	Spring	£3.52 £2.93
15	HV505 15 77-01 Available to backorder	Throttle	£6.40 £5.33
16	HV504 10 63-01 Available to backorder	Handle Insert	£7.06 £5.88
17	HV525 88 74-02 In stock	Screw Citxpant	£1.25 £1.04
18	HV596 55 40-02 Available to backorder	Fuel Tank Kit	£114.12 £95.10
19	HV582 79 41-05 Available to backorder	Label	£3.54 £2.95
