Husqvarna 550 XP G Mark II - 967690915 - Cylinder Piston

Name: Husqvarna 550 XP G Mark II - 967690915 - Cylinder Piston
SKU: 550_XP_G_Mark_II_967690915_EG_835235_Original_20file-group
Price: 0.62 GBP
Availability: InStock

Part No. 550_XP_G_Mark_II_967690915_EG_835235_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 550 XP G Mark II - 967690915 - Cylinder Piston

Description

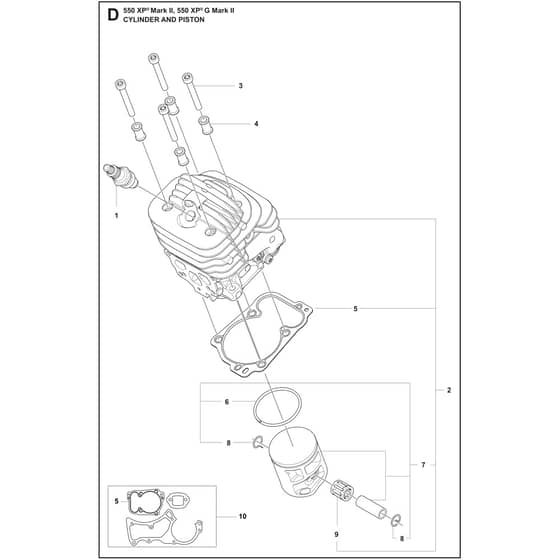

Husqvarna 550 XP G Mark II - 967690915 - Cylinder Piston - Parts Diagram

	Part No.	Details
1	3945 In stock	Spark Plug	£4.38 £3.65
2	HV590 33 05-06 Available to backorder	Cylinder Kit	£299.04 £249.20
3	HV525 82 49-07 Available to backorder	Screw Itxscm	£0.91 £0.76
4	HV576 71 76-02 In stock	Sleeve	£5.75 £4.79
5	HV591 17 74-01 Available to backorder	Gasket	£12.48 £10.40
6	HV582 70 28-01 Available to backorder	Piston Ring	£12.97 £10.81
7	HV582 64 56-02 Available to backorder	Piston Assy	£105.96 £88.30
8	HV737 44 10-00 Available to backorder	Snap Ring	£0.74 £0.62
9	HV501 10 31-01 Available to backorder	Needle Bearing	£11.38 £9.48
10	HV595 89 76-01 Available to backorder	Gasket Kit	£8.86 £7.38
