Husqvarna 550 XP G Mark II - 967690915 - Clutch And Oil Pump

Name: Husqvarna 550 XP G Mark II - 967690915 - Clutch And Oil Pump
SKU: 550_XP_G_Mark_II_967690915_OJ_349986_HighResPng-group
Price: 0.6 GBP
Availability: InStock

Part No. 550_XP_G_Mark_II_967690915_OJ_349986_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 550 XP G Mark II - 967690915 - Clutch And Oil Pump

Description

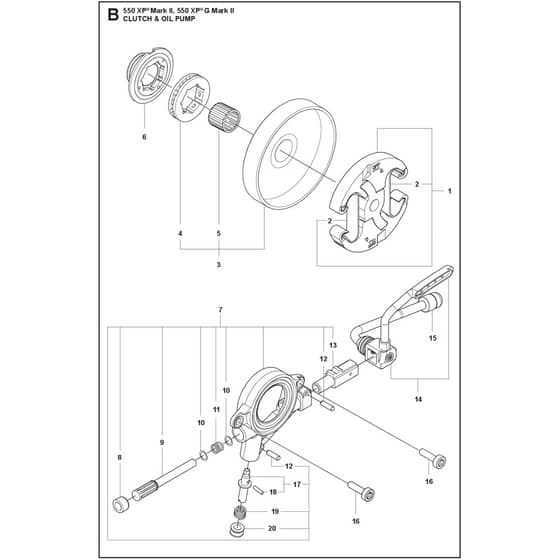

Husqvarna 550 XP G Mark II - 967690915 - Clutch And Oil Pump - Parts Diagram

	Part No.	Details
1	HV577 51 82-02 In stock	Clutch Assy	£67.28 £56.07
2	HV597 64 54-01 Available to backorder	Clutch Spring	£5.52 £4.60
3	HV596 21 83-03 In stock	Clutch Drum Assy	£48.20 £40.17
4	HV501 45 74-02 In stock	Rim Sprocket	£13.88 £11.57
5	HV599 53 15-01 In stock	Needle Bearing	£10.88 £9.07

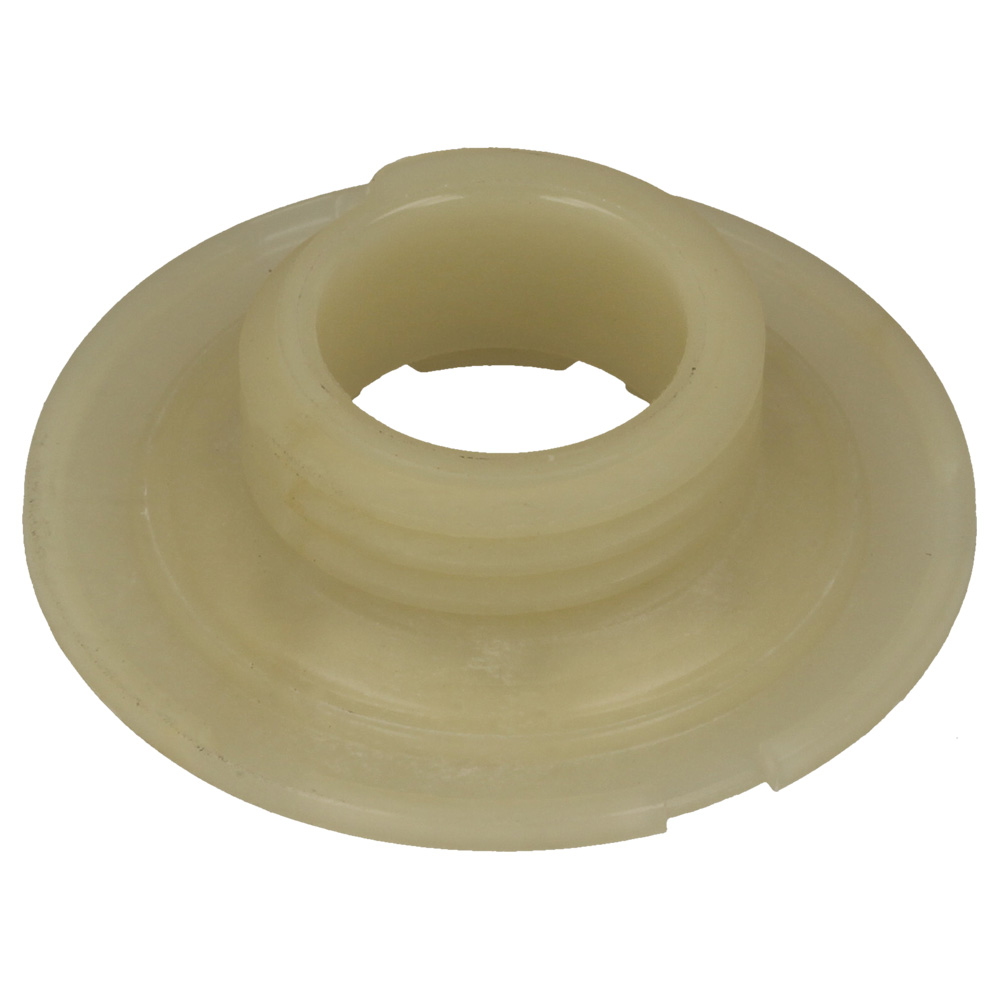

6	HV586 20 17-01 Available to backorder	Worm Wheel (Use with 595897707 Crankcase kit from s.n 2025 2504747 -)	£4.97 £4.14
6	HV582 81 40-01 In stock	Worm Wheel (Use with 595897705 Crankcase kit - up to s.n 2025 2504746)	£6.29 £5.24
7	HV505 19 99-11 Available to backorder	Oil Pump Assy	£30.40 £25.33
8	HV503 62 49-01 Available to backorder	Sealing Plug	£5.03 £4.19
9	HV505 20 02-04 Available to backorder	Pump Piston	£18.38 £15.32
10	HV503 23 00-60 Available to backorder	Washer	£2.06 £1.72
11	HV503 89 16-01 Available to backorder	Spring	£3.32 £2.77
12	HV720 12 33-00 Available to backorder	Parallel Pin	£1.28 £1.07
13	HV505 20 01-01 Available to backorder	Pump Cylinder	£7.70 £6.42
14	HV505 20 04-02 Available to backorder	Oil Hose	£12.97 £10.81
15	HV504 71 00-03 Available to backorder	Oil Plummet	£11.56 £9.63
16	HV526 81 81-01 Available to backorder	Screw Itxscm	£0.72 £0.60
17	HV505 15 70-01 Available to backorder	Adjustment Screw	£6.40 £5.33
18	HV721 11 64-30 Available to backorder	Grooved Pin	£1.28 £1.07
19	HV503 89 15-01 Available to backorder	Spring	£2.80 £2.33
20	HV505 20 03-01 Available to backorder	Casing	£5.90 £4.92
