Husqvarna 550 XP G Mark II - 967690915 - Chain Brake And Clutch Cover

Name: Husqvarna 550 XP G Mark II - 967690915 - Chain Brake And Clutch Cover
SKU: 550_XP_G_Mark_II_967690915_UP_924051_HighResPng-group
Price: 1.03 GBP
Availability: InStock

Part No. 550_XP_G_Mark_II_967690915_UP_924051_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 550 XP G Mark II - 967690915 - Chain Brake And Clutch Cover

Description

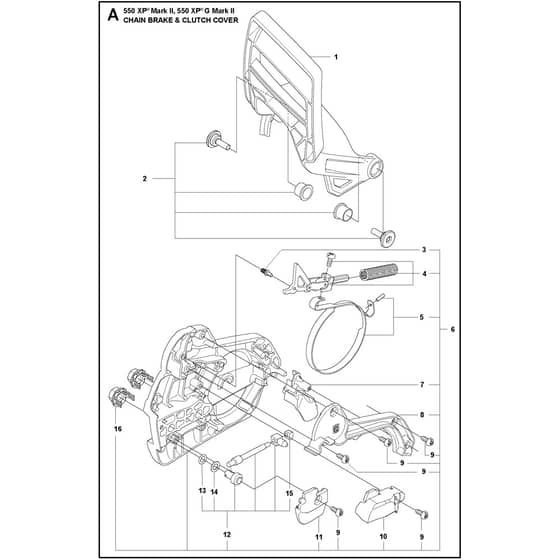

Husqvarna 550 XP G Mark II - 967690915 - Chain Brake And Clutch Cover - Parts Diagram

	Part No.	Details

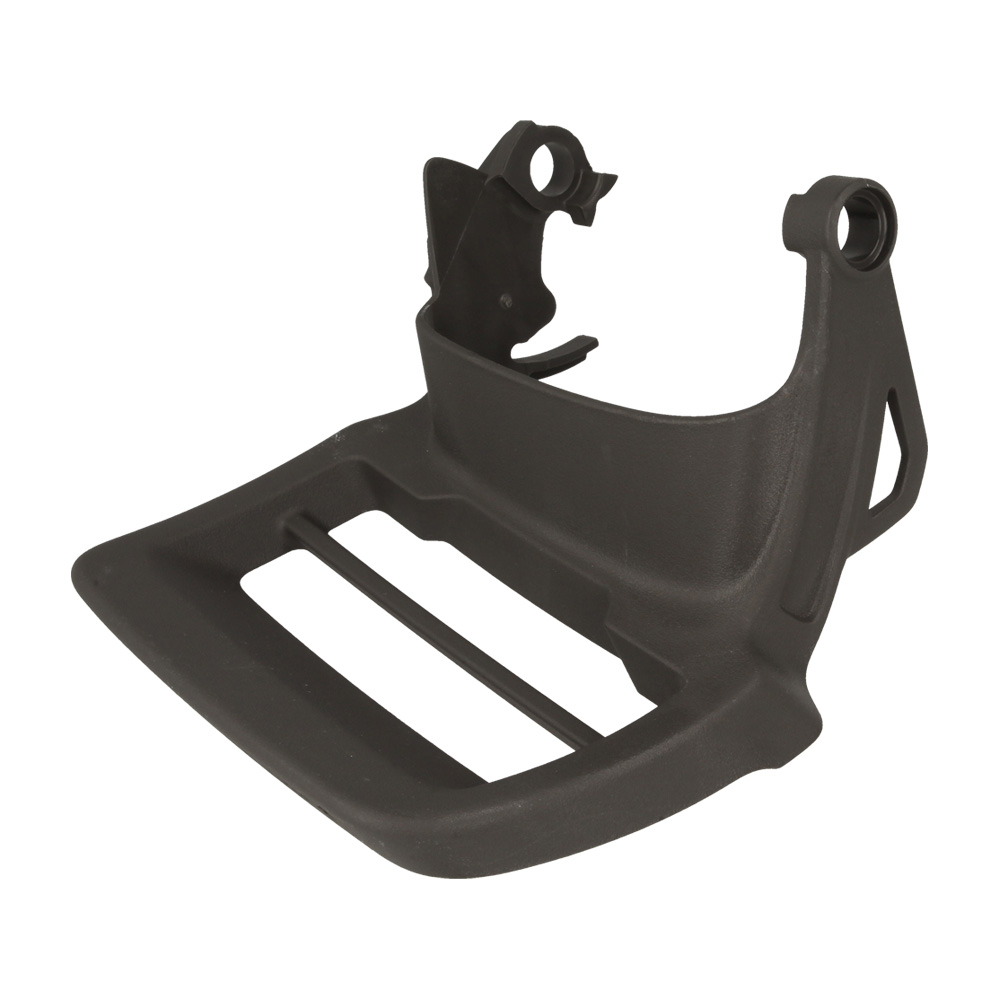

1	HV591 08 36-01 Available to backorder	Hand Guard	£27.95 £23.29
2	HV596 21 82-01 Available to backorder	Screw Kit	£3.46 £2.88
3	HV503 75 18-01 Available to backorder	Pin	£1.45 £1.21
4	HV596 21 81-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
5	HV505 19 95-02 In stock	Brake Band Assy	£13.73 £11.44
6	HV501 84 61-03 Available to backorder	Clutch Cover Assy	£106.44 £88.70
7	HV505 20 16-01 Available to backorder	Guard	£9.62 £8.02
8	HV505 19 97-03 Available to backorder	Cover	£8.34 £6.95
9	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.24 £1.03
11	HV505 19 98-01 In stock	Chain Guide	Was £4.66 £3.88 Special Price £3.23 £2.69
12	HV575 26 04-04 Available to backorder	Chain Tensioner Kit	£7.66 £6.38
13	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
14	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
15	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
16	HV505 19 73-01 In stock	Nut	£4.48 £3.73
