Husqvarna 550 XP G Mark II - 967690915 - Carburetor And Air Filter

Description

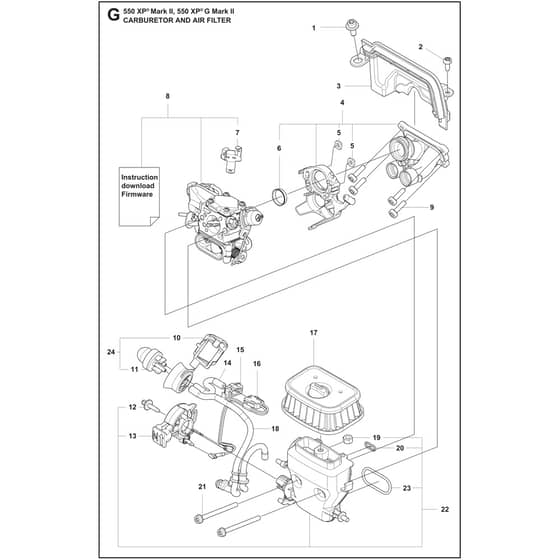

Husqvarna 550 XP G Mark II - 967690915 - Carburetor And Air Filter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV525 82 44-01 Available to backorder	Screw Itxscm	£2.03 £1.69
2	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.22 £1.02
3	HV589 58 45-01 Available to backorder	Insulation Wall	£7.12 £5.93
4	HV593 78 49-01 Available to backorder	Inlet Pipe Assy	£32.36 £26.97
5	HV503 22 65-03 Available to backorder	Square Nut	£2.80 £2.33
6	HV585 19 50-01 Available to backorder	Support Sleeve	£5.68 £4.73
7	HV589 34 06-01 Available to backorder	Retainer	£3.62 £3.02
8	HV531 01 39-01 Available to backorder	Carburettor Kit	£149.62 £124.68
9	HV526 81 81-01 Available to backorder	Screw Itxscm	£0.77 £0.64
10	HV536 54 96-01 Available to backorder	Sealing (From s.n 20241510254)	£4.37 £3.64
11	HV540 05 49-01 Available to backorder	Purge (From s.n 20241510254)	£6.46 £5.38
12	HV505 15 62-01 Available to backorder	Screw	£1.94 £1.62
13	HV510 01 72-02 Available to backorder	Choke Control Assy	£9.72 £8.10
14	HV523 05 68-01 Available to backorder	Fuel Hose	£4.66 £3.88
15	HV589 34 07-01 Available to backorder	Contact Clamp	£3.12 £2.60
16	HV577 53 64-02 Available to backorder	Wiring Assy	£7.57 £6.31
17	HV590 45 88-03 Available to backorder	Air Filter Assy (Non-Woven - Clear)	£19.24 £16.03
17	HV590 45 88-01 Available to backorder	Air Filter (Nylon Mesh - 64 Micron Rating - Black)	£29.56 £24.63
17	HV590 45 88-02 In stock	Air Filter (Nylon Mesh - 25 Micron Rating - Yellow)	£18.76 £15.63
18	HV525 34 43-03 Available to backorder	Fuel Hose	£12.38 £10.32
19	HV731 23 14-01 Available to backorder	Hexagon Nut	£1.51 £1.26
20	HV525 61 92-01 Available to backorder	Sealing	£2.40 £2.00
21	HV581 14 31-01 Available to backorder	Screw Itxscfm	£0.92 £0.77
22	HV589 55 07-04 Available to backorder	Filter Holder Assy (Blue)	£52.75 £43.96
23	HV525 61 90-01 Available to backorder	Sealing	£6.74 £5.62
