Husqvarna 55 Rancher - 2010-Current - Crankcase

Name: Husqvarna 55 Rancher - 2010-Current - Crankcase
SKU: 55_rancher_2010_current_crankcase-group
Price: 0.85 GBP
Availability: InStock

Part No. 55_rancher_2010_current_crankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 55 Rancher - 2010-Current - Crankcase

Description

Husqvarna 55 Rancher

Model Year - 2010-Current

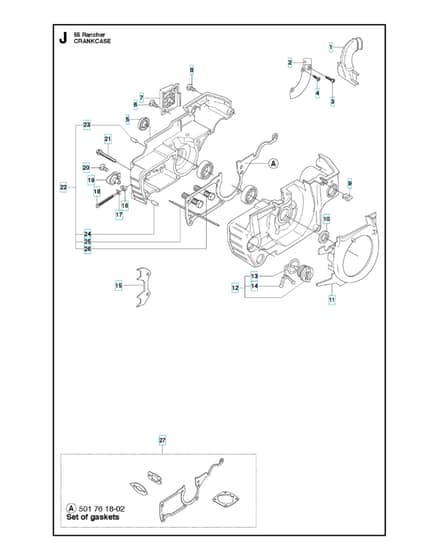

Crankcase - Parts Diagram

	Part No.	Details
1	HV503 72 98-01 Available to backorder	Air Nozzle	£7.06 £5.88
3	HV503 21 27-16 Available to backorder	Screw Crpant	£1.02 £0.85
10	HV505 27 57-19 In stock	Sealing Ring	£13.93 £11.61
11	HV501 76 30-03 Available to backorder	Ledskena	£8.98 £7.48
12	HV501 76 56-02 Available to backorder	Tank Cap Assy	£9.79 £8.16
13	HV740 44 05-00 Available to backorder	O-Ring	£3.56 £2.97
14	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
15	HV501 79 50-01 Available to backorder	Spike	£13.63 £11.36
16	HV501 45 41-01 Available to backorder	Nut	£6.76 £5.63
17	HV501 45 27-02 Available to backorder	Lock Nut	£2.99 £2.49
18	HV501 54 63-01 Available to backorder	Screw	£2.88 £2.40
19	HV501 76 64-03 Available to backorder	Chain Catcher	£4.94 £4.12
20	HV503 20 02-25 In stock	Screw Ihscfm	£2.35 £1.96
22	HV501 76 22-02 Available to backorder	Crankcase	£287.52 £239.60
24	HV720 13 07-10 Available to backorder	Parallel Pin	£1.32 £1.10
25	HV503 66 84-01 Available to backorder	Tank Vent Assy	£5.28 £4.40
27	HV501 76 18-02 Available to backorder	Gasket Kita	£21.78 £18.15
