Husqvarna 55 - 2007-Current - Chain Brake & Clutch Cover

Name: Husqvarna 55 - 2007-Current - Chain Brake & Clutch Cover
SKU: 55_2007_current_chain_brake_clutch_cover-group
Price: 0.65 GBP
Availability: InStock

Part No. 55_2007_current_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 55 - 2007-Current - Chain Brake & Clutch Cover

Description

Husqvarna 55

Model Year - 2007-Current

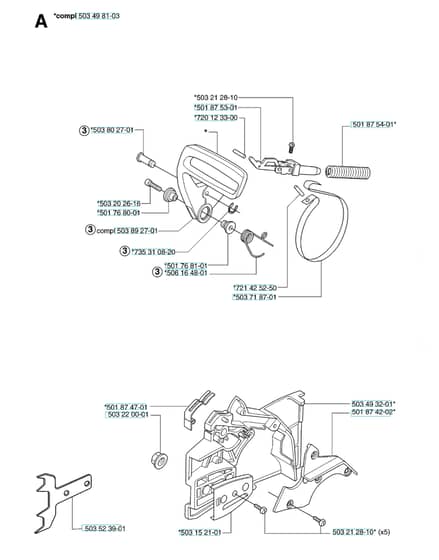

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
501768001	HV501 76 80-01 Available to backorder	Shaft	£5.51 £4.59
501768101	HV501 76 81-01 Available to backorder	Shaft	£5.65 £4.71
501874701	HV501 87 47-01 In stock	Spring	£3.32 £2.77
501875301	HV501 87 53-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
501875401	HV501 87 54-01 Available to backorder	Brake Spring	£5.78 £4.82
503152101	HV503 15 21-01 Available to backorder	Cover Sheet	£5.51 £4.59
503202616	HV503 20 26-16 Available to backorder	Screw Ihscm	£1.79 £1.49
503212810	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
503220001	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
503493201	HV503 49 32-01 Available to backorder	Clutch Cover	£35.26 £29.38
503498103	HV503 49 81-03 Available to backorder	Clutch Cover Assy	£107.28 £89.40
503523901	HV503 52 39-01 Available to backorder	Spike	£20.11 £16.76
503718701	HV503 71 87-01 Available to backorder	Brake Band	£14.10 £11.75
503802701	HV503 80 27-01 Available to backorder	Pivot Pin	£5.02 £4.18
503892701	HV503 89 27-01 Available to backorder	Hand Guard	£32.08 £26.73
506164801	HV506 16 48-01 Available to backorder	Position Spring	£4.57 £3.81
720123300	HV720 12 33-00 Available to backorder	Parallel Pin	£1.28 £1.07
721425250	HV721 42 52-50 Available to backorder	Spring Pin	£1.28 £1.07
735310820	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
501874301	HV501 87 43-01 Available to backorder	Brake Band	£11.54 £9.62
