Husqvarna 545 Mark II - Fuel Tank

Husqvarna 545 Mark II - Fuel Tank

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 545 Mark II - Fuel Tank

Husqvarna 545 Mark II - Fuel Tank

Description

Husqvarna 545 Mark II

Model Year -

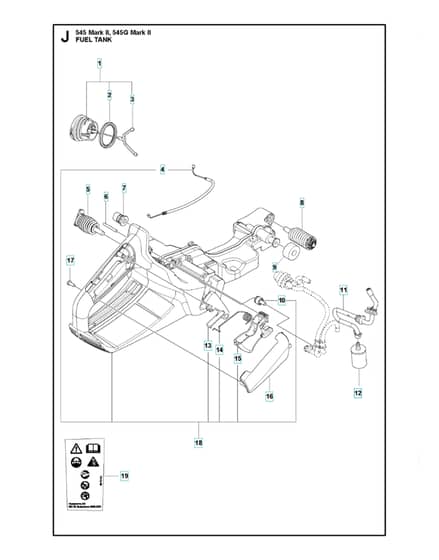

Fuel Tank - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV522 62 00-01 Available to backorder	Tank Cap Assy		£9.07 £7.56
	2		HV537 21 50-01 Available to backorder	Gasket		£5.36 £4.47
	3		HV503 57 89-01 Available to backorder	Holder		£5.71 £4.76
	4		HV596 55 00-01 Available to backorder	Throttle Cable Assy		£26.54 £22.12
	5		HV596 88 20-02 Available to backorder	Antivibration Element		£19.70 £16.42
	6		HV720 18 25-20 Available to backorder	Parallel Pin		£1.50 £1.25
	7		HV501 00 76-01 Available to backorder	Support		£1.90 £1.58
	8		HV590 37 74-01 Available to backorder	Antivibration Element		£20.86 £17.38
	9		HV523 08 55-01 In stock	Deflection Limiter		£6.06 £5.05
	10		HV501 15 29-01 In stock	Tank Vent Assy		£18.12 £15.10
	11		HV529 57 82-02 In stock	Fuel Hose		£11.08 £9.23
	13		HV544 09 98-01 Available to backorder	Throttle Lockout		£7.12 £5.93
	14		HV544 09 99-01 Available to backorder	Spring		£3.48 £2.90
	15		HV505 15 77-01 Available to backorder	Throttle		£6.46 £5.38
	16		HV504 10 63-01 Available to backorder	Handle Insert		£6.62 £5.52
	17		HV525 88 74-02 In stock	Screw Citxpant		£1.26 £1.05
	18		HV596 55 40-02 Available to backorder	Fuel Tank Kit		£119.20 £99.33
	19		HV582 79 41-05 Available to backorder	Label		£3.54 £2.95

Description

Husqvarna 545 Mark II

Model Year -

Fuel Tank - Parts Diagram
