Husqvarna 545 - Fuel Tank

Husqvarna 545 - Fuel Tank

Part No. 545_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 545 - Fuel Tank

Husqvarna 545 - Fuel Tank

Description

Husqvarna 545

Model Year -

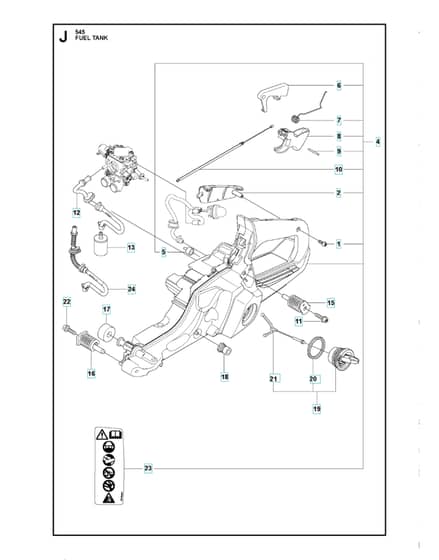

Fuel Tank - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV504 10 63-01 Available to backorder	Handle Insert		£7.06 £5.88
	4		HV577 79 02-03 Available to backorder	Fuel Tank Assy		£149.04 £124.20
	5		HV501 15 29-01 In stock	Tank Vent Assy		£17.90 £14.92
	6		HV544 09 98-01 Available to backorder	Throttle Lockout		£7.06 £5.88
	7		HV544 09 99-01 Available to backorder	Spring		£3.52 £2.93
	8		HV505 15 77-01 Available to backorder	Throttle		£6.40 £5.33
	9		HV720 18 25-20 Available to backorder	Parallel Pin		£1.56 £1.30
	10		HV579 48 24-01 Available to backorder	Throttle Cable Assy		£22.28 £18.57
	11		HV525 79 81-02 Available to backorder	Screw Itxscft		£2.05 £1.71
	12		HV573 99 35-03 Available to backorder	Fuel Hoseup To At-7A		£10.81 £9.01
	13		HV503 44 32-01 In stock	Fuel Filter		£3.94 £3.28
	15		HV578 22 74-03 Available to backorder	Antivibration Element		£19.24 £16.03
	16		HV505 12 87-02 Available to backorder	Antivibration Element		£22.80 £19.00
	17		HV523 08 55-01 In stock	Deflection Limiter		£6.00 £5.00
	18		HV501 00 76-01 Available to backorder	Support		£1.94 £1.62
	19		HV522 62 00-01 Available to backorder	Tank Cap Assy		£8.68 £7.23
	20		HV537 21 50-01 Available to backorder	Gasket		£5.32 £4.43
	21		HV503 57 89-01 Available to backorder	Holder		£5.42 £4.52
	22		HV525 79 81-03 Available to backorder	Screw Itxscft		£0.95 £0.79
	23		HV577 84 43-01 Available to backorder	Decal		£2.88 £2.40
	24		HV529 57 82-02 In stock	Fuel Hosefrom At-7B		£11.54 £9.62

Description

Husqvarna 545

Model Year -

Fuel Tank - Parts Diagram
