Husqvarna 545

Model Year -

Carburetor Details - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV587 08 48-07 Available to backorder	Carburettor Kitat-7C	£156.54 £130.45
4	HV577 26 29-01 Available to backorder	Retainer	£3.56 £2.97
5	HV574 35 77-01 Available to backorder	Lever	£5.56 £4.63
6	HV576 61 85-01 Available to backorder	Lever	£4.42 £3.68
7	HV577 21 92-01 Available to backorder	Throttle Lever Assy	£5.56 £4.63
8	HV574 35 79-01 Available to backorder	Link	£4.56 £3.80
9	HV574 35 81-01 Available to backorder	Cover	£9.96 £8.30
12	HV574 35 84-01 Available to backorder	Shaft Assy	£12.80 £10.67
13	HV574 35 82-01 Available to backorder	Shaft	£10.66 £8.88
16	HV503 56 34-01 Available to backorder	Needle Valve	£9.24 £7.70
25	HV504 13 09-06 Available to backorder	Gasket	£4.66 £3.88
26	HV574 35 86-01 Available to backorder	Gasket	£11.38 £9.48
28	HV577 01 66-01 Available to backorder	Diaphragm	£8.94 £7.45
30	HV501 46 87-01 Available to backorder	Screw	£1.28 £1.07
32	HV537 00 31-01 Available to backorder	Screw	£1.99 £1.66
33	HV502 84 71-01 Available to backorder	Screw	£1.56 £1.30
34	HV544 11 15-01 Available to backorder	Screw	£1.28 £1.07
38	HV503 56 24-01 Available to backorder	Spring	£3.41 £2.84
39	HV574 35 93-01 Available to backorder	Spring	£4.56 £3.80

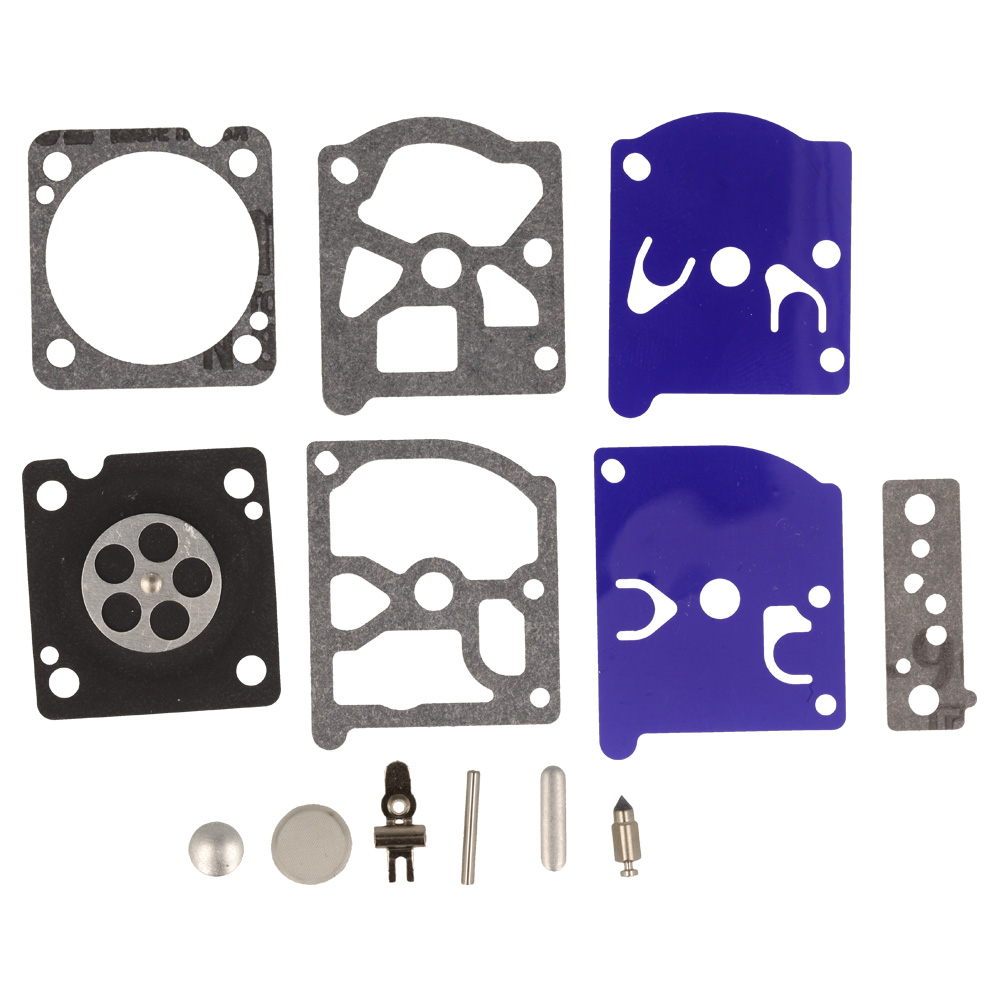

41	HV577 66 61-01 Available to backorder	Repair Kit- Up To S/N 20182399999	£15.56 £12.97
45	HV579 32 31-01 Available to backorder	Throttle Valve Assy	£27.76 £23.13
46	HV501 66 61-01 Available to backorder	Screen	£5.26 £4.38
47	HV505 52 01-25 Available to backorder	Pin	£4.56 £3.80
48	HV574 35 96-01 Available to backorder	Bushing	£5.26 £4.38
49	HV502 84 74-01 Available to backorder	Lever	£4.56 £3.80
51	HV586 76 74-01 Available to backorder	Shaft Assy	£15.64 £13.03
52	HV574 35 76-01 Available to backorder	Spring	£3.98 £3.32
54	HV503 79 95-01 Available to backorder	Retainer Ring	£1.16 £0.97
55	HV596 57 08-01 Available to backorder	Diaphragm Assyfrom S/N 20182400001- For At-7C.	£37.80 £31.50
55	HV576 66 65-01 Available to backorder	Gasket Kit- Up To S/N 20182399999	£12.84 £10.70
