Husqvarna 543RS - 966779901 - Carburetor And Air Filter 01

Name: Husqvarna 543RS - 966779901 - Carburetor And Air Filter 01
SKU: 543RS_966779901_PE_635820_HighResPng-group
Price: 1.71 GBP
Availability: InStock

Part No. 543RS_966779901_PE_635820_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 543RS - 966779901 - Carburetor And Air Filter 01

Description

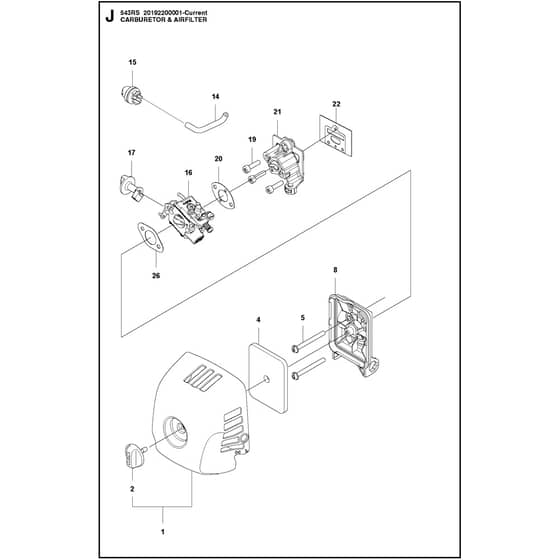

Husqvarna 543RS - 966779901 - Carburetor And Air Filter - Parts Diagram

	Part No.	Details
1	HV577 98 00-02 Available to backorder	Air Filter Cover	£23.72 £19.77
2	HV577 97 98-01 Available to backorder	Turning Knob	£7.14 £5.95
4	HV577 92 67-01 In stock	Air Filter	£8.64 £7.20
5	HV521 51 55-01 Available to backorder	Screw	£2.59 £2.16
8	HV576 68 55-01 Available to backorder	Filter Housing	£14.74 £12.28
14	HV577 50 95-01 Available to backorder	Tube	£4.24 £3.53
15	HV503 93 66-01 In stock	Purge	£15.11 £12.59
16	HV577 99 28-06 Available to backorder	Carburettor	£86.76 £72.30
17	HV577 13 31-01 Available to backorder	Choke Control	£5.40 £4.50
19	HV506 68 90-01 Available to backorder	Bolt	£2.05 £1.71
20	HV577 67 38-01 Available to backorder	Gasket	£5.03 £4.19
21	HV576 68 58-01 Available to backorder	Insulator	£17.32 £14.43
22	HV585 99 66-01 Available to backorder	Gasket	£10.21 £8.51
26	HV577 88 24-02 In stock	Gasket	£4.92 £4.10
