Husqvarna 543RS - 966779901 - Bevel Gear 01

Name: Husqvarna 543RS - 966779901 - Bevel Gear 01
SKU: 543RS_966779901_CH_705430_HighResPng-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 543RS - 966779901 - Bevel Gear 01

Description

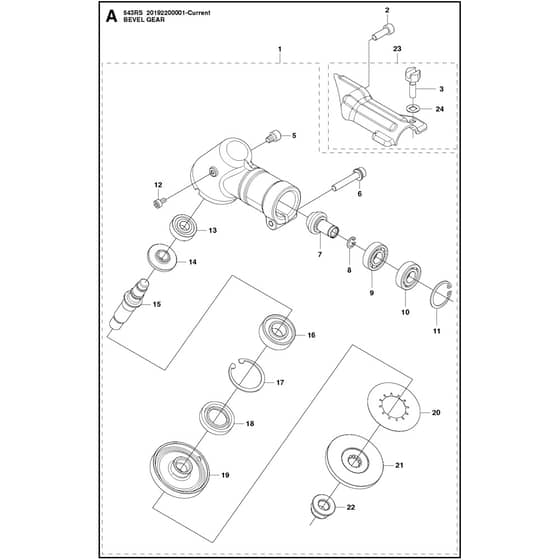

Husqvarna 543RS - 966779901 - Bevel Gear - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV579 07 62-02 Available to backorder	Gear Case	£188.65 £157.21
2	HV574 71 08-01 Available to backorder	Bolt	£1.42 £1.18
3	HV537 18 95-01 Available to backorder	Screw	£4.02 £3.35
5	HV521 86 20-01 Available to backorder	Bolt	£2.06 £1.72
6	HV521 86 24-01 Available to backorder	Bolt	£3.62 £3.02
7	HV579 07 68-01 Available to backorder	Pinion (20182200001-Current)	£30.22 £25.18
7	HV528 81 80-01 In stock	Pinion (20113200001-20182200000)	Was £25.92 £21.60 Special Price £17.83 £14.86
8	HV516 12 41-01 Available to backorder	Snap Ring	£0.64 £0.53
9	HV516 12 79-01 Available to backorder	Bearing	£5.82 £4.85
10	HV516 13 00-01 Available to backorder	Ball Bearing	£5.82 £4.85
11	HV506 60 99-01 Available to backorder	Snap Ring	£1.16 £0.97
12	HV544 36 27-01 Available to backorder	Bolt	£1.56 £1.30
13	HV505 17 02-01 Available to backorder	Bearing	£8.62 £7.18
14	HV528 82 62-01 In stock	Gear (20113200001-20182200000)	Was £44.62 £37.18 Special Price £30.72 £25.60
14	HV579 07 67-01 Available to backorder	Gear (20182200001-Current)	£30.22 £25.18
15	HV528 81 59-01 Available to backorder	Shaft.Gear (20113200001-20182200000)	£71.98 £59.98
15	HV579 07 66-01 Available to backorder	Shaft (20182200001-Current)	£33.56 £27.97
16	HV516 13 17-01 Available to backorder	Bearing	£7.96 £6.63
18	HV521 52 22-01 Available to backorder	Seal	£3.54 £2.95
19	HV579 07 69-01 Available to backorder	Tool Holder	£29.54 £24.62
20	HV579 07 70-01 Available to backorder	Plate	£6.97 £5.81
21	HV579 07 71-01 Available to backorder	Tool Holder	£29.54 £24.62
22	HV579 07 64-01 Available to backorder	Nut	£3.62 £3.02
23	HV575 77 88-01 Available to backorder	Bracket	£18.76 £15.63
24	HV575 67 73-01 Available to backorder	Lockwasher	£2.14 £1.78
