Husqvarna 542RBS - 2011-Current - Engine

Description

Husqvarna 542RBS

Model Year - 2011-Current

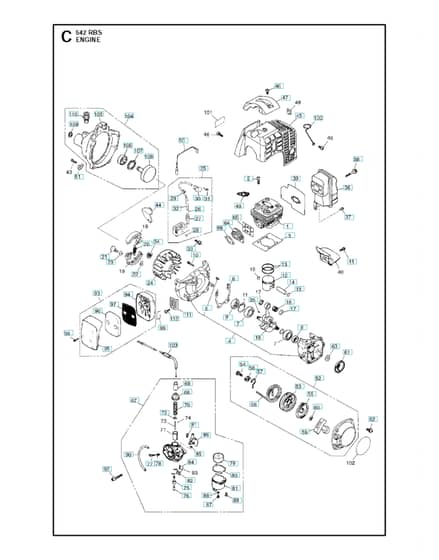

Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV513 41 25-01 Available to backorder	Bolt	£2.06 £1.72
3	HV510 06 43-01 Available to backorder	Gasket	£5.08 £4.23
4	HV505 29 60-01 Available to backorder	Crankcase	£114.62 £95.52
6	HV505 29 64-01 Available to backorder	Gasket	£3.16 £2.63
8	HV504 12 15-01 Available to backorder	Sealing	£14.42 £12.02
9	HV505 29 67-01 Available to backorder	Seal	£15.12 £12.60
10	HV506 60 94-01 Available to backorder	Bolt	£2.06 £1.72
12	HV505 29 69-01 Available to backorder	Piston	£58.96 £49.13
13	HV510 91 79-01 Available to backorder	Piston Ring	£7.20 £6.00
15	HV516 28 30-01 Available to backorder	Ring	£0.77 £0.64
16	HV505 29 73-01 Available to backorder	Bearing	£13.26 £11.05
17	HV513 75 24-01 Available to backorder	Washer	£14.42 £12.02
20	HV505 29 77-01 Available to backorder	Spring	£6.04 £5.03
21	HV505 29 78-01 Available to backorder	Screw	£5.32 £4.43
22	HV505 29 80-01 Available to backorder	Washer	£1.28 £1.07
23	HV505 29 81-01 Available to backorder	Washer	£1.56 £1.30
30	HV505 29 88-01 Available to backorder	Hub Cap	£9.18 £7.65
34	HV504 11 80-01 Available to backorder	Nut	£2.72 £2.27
35	HV506 68 94-01 Available to backorder	Key	£1.56 £1.30
37	HV505 29 94-01 Available to backorder	Bolt	£3.62 £3.02
38	HV505 29 95-01 Available to backorder	Bolt	£2.06 £1.72
39	HV526 52 28-01 Available to backorder	Gasket	£14.42 £12.02
46	HV505 30 06-01 Available to backorder	Screw	£2.06 £1.72
47	HV505 30 11-01 Available to backorder	Guard	£8.82 £7.35
52	HV515 36 69-01 Available to backorder	Recoil-A	£60.26 £50.22
53	HV504 11 47-01 Available to backorder	Reel	£14.40 £12.00
55	HV504 11 50-01 Available to backorder	Spiral Spring	£13.12 £10.93
56	HV504 11 46-01 Available to backorder	Collar	£7.12 £5.93
57	HV504 11 48-01 Available to backorder	Arm	£5.24 £4.37
59	HV505 30 34-01 Available to backorder	Knob	£9.06 £7.55
61	HV504 11 44-01 Available to backorder	Pulley	£15.84 £13.20
62	HV505 30 44-01 Available to backorder	Screw	£1.82 £1.52
63	HV505 30 46-01 Available to backorder	Collar	£4.20 £3.50
65	HV505 30 49-01 Available to backorder	Gasket.Insu	£4.45 £3.71
106	HV529 26 98-01 Available to backorder	Bearing	£6.36 £5.30
107	HV506 60 99-01 Available to backorder	Snap Ring	£1.16 £0.97
108	HV591 44 36-01 Available to backorder	Drum	£59.41 £49.51
109	HV516 12 41-01 Available to backorder	Snap Ring	£0.64 £0.53
