Husqvarna 542i XP G - 970647115 - Chassis

Name: Husqvarna 542i XP G - 970647115 - Chassis
SKU: 542i_XP_G_970647115_HK_897930_Original_20file-group
Price: 0.75 GBP
Availability: InStock

Part No. 542i_XP_G_970647115_HK_897930_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 542i XP G - 970647115 - Chassis

Description

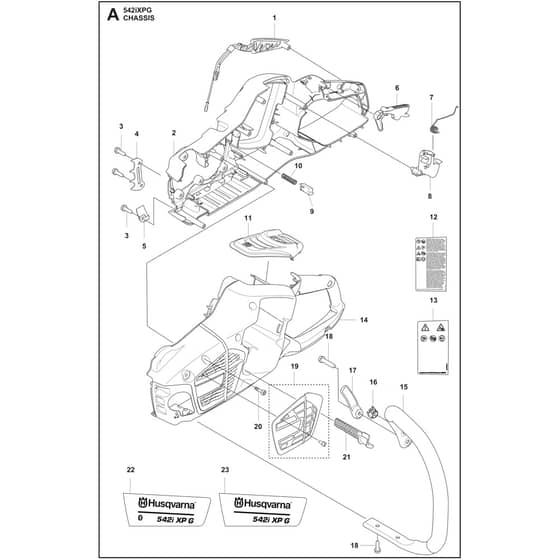

Husqvarna 542i XP G - 970647115 - Chassis - Parts Diagram

	Part No.	Details
1	HV536 45 13-01 Available to backorder	Handle Insert	£70.56 £58.80
2	HV594 92 92-02 Available to backorder	Chassis	£28.34 £23.62
3	HV573 92 58-01 Available to backorder	Screw Itxscft	£1.61 £1.34
4	HV577 28 66-01 Available to backorder	Spike	£8.45 £7.04
5	HV505 28 85-01 Available to backorder	Chain Catcher	£5.96 £4.97
6	HV589 27 39-01 Available to backorder	Throttle Lockout	£5.63 £4.69
7	HV593 06 42-02 Available to backorder	Spring	£3.19 £2.66
8	HV595 83 40-01 Available to backorder	Throttle Trigger	£7.68 £6.40
9	HV577 99 66-01 Available to backorder	Push Button	£3.32 £2.77
10	HV585 48 00-01 Available to backorder	Spring	£3.73 £3.11
11	HV595 30 72-01 Available to backorder	Cover	£9.46 £7.88
13	HV531 08 20-01 Available to backorder	Label	£4.37 £3.64
14	HV594 92 93-01 Available to backorder	Chassis	£77.64 £64.70
15	HV593 98 83-04 Available to backorder	Front Handle Assy	£115.32 £96.10
16	HV531 25 09-01 Available to backorder	Clip	£4.01 £3.34
17	HV531 11 00-01 Available to backorder	Cover	£4.14 £3.45
18	HV525 79 81-01 Available to backorder	Screw Itxscft	£0.90 £0.75
19	HV597 12 49-01 Available to backorder	Cover Kit	£14.09 £11.74
20	HV580 29 29-01 Available to backorder	Screw Itxsct	£2.28 £1.90
21	HV594 03 57-02 Available to backorder	Air Intake	£4.14 £3.45
