Husqvarna 540i XP G - 970568012 - Electrical

Description

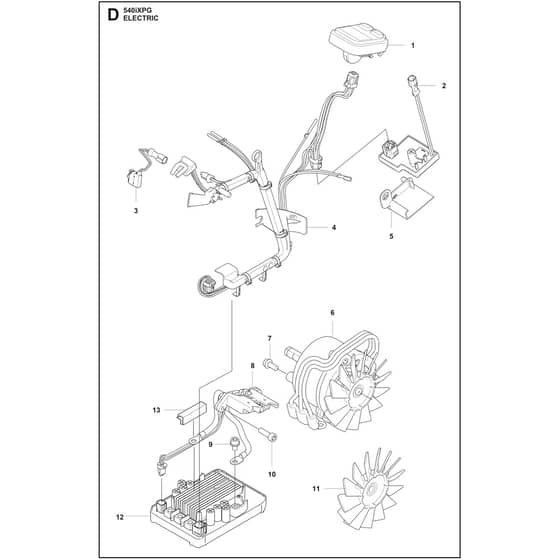

Husqvarna 540i XP G - 970568012 - Electrical - Parts Diagram

	Part No.	Details
1	HV529 86 74-01 Available to backorder	Control Panel	£117.60 £98.00
2	HV529 63 78-01 Available to backorder	Control Unit	£54.34 £45.28
3	HV593 95 41-01 Available to backorder	Micro Switch	£23.17 £19.31
4	HV531 15 96-01 Available to backorder	Wiring Assy	£89.64 £74.70
5	HV531 43 95-01 Available to backorder	Bracket	£4.37 £3.64
6	HV598 40 25-01 Available to backorder	Motor Assy	£183.72 £153.10
7	HV525 75 51-05 In stock	Screw Itxscfm	£1.63 £1.36
8	HV593 08 38-01 Available to backorder	Wiring Assy	£40.97 £34.14
9	HV525 75 51-07 Available to backorder	Screw Itxscfm	£0.71 £0.59
10	HV580 29 29-01 Available to backorder	Screw Itxsct	£2.28 £1.90
11	HV593 78 26-01 Available to backorder	Fan	£3.85 £3.21
12	HV546 95 37-01 Available to backorder	Control Unit	£159.00 £132.50
13	HV599 27 48-01 Available to backorder	Bracket	£4.26 £3.55
