Husqvarna 540i XP G - 970568012 - Clutch

Name: Husqvarna 540i XP G - 970568012 - Clutch
SKU: 540i_XP_G_970568012_JR_624445_HighResPng-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 540i XP G - 970568012 - Clutch

Description

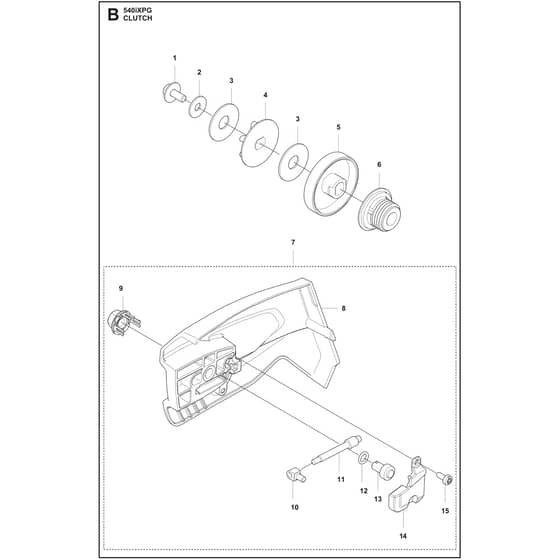

Husqvarna 540i XP G - 970568012 - Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV525 75 51-05 Available to backorder	Screw Itxscfm	£1.63 £1.36
2	HV503 23 00-35 Available to backorder	Washer	£2.52 £2.10
3	HV597 67 01-01 Available to backorder	Disc Spring	£5.93 £4.94
4	HV590 08 77-01 Available to backorder	Spur Sprocket (3.8" mini - 6T)	£14.40 £12.00
4	HV594 03 52-01 Available to backorder	Spur Sprocket (.325" mini - 7T)	£13.14 £10.95
4	HV579 53 45-01 Available to backorder	Spur Sprocket (1.4" - 8T)	£14.40 £12.00
5	HV593 68 44-01 Available to backorder	Brake Drum	£7.68 £6.40
6	HV593 78 48-01 Available to backorder	Pump Pinion	£6.94 £5.78
7	HV594 03 03-02 Available to backorder	Clutch Cover Assy	£51.17 £42.64
8	HV594 03 02-02 Available to backorder	Clutch Cover	£26.16 £21.80
9	HV505 19 73-01 In stock	Nut	£4.30 £3.58
10	HV588 85 03-01 Available to backorder	Pin	£5.04 £4.20
11	HV537 39 70-01 Available to backorder	Worm Screw	£11.94 £9.95
12	HV740 48 07-02 Available to backorder	O-Ring	£3.84 £3.20
13	HV599 72 41-01 Available to backorder	Worm Wheel	£9.22 £7.68
14	HV505 21 45-01 Available to backorder	Cover	£4.72 £3.93
15	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.22 £1.02
