Husqvarna 536LIXP - Electrical

Name: Husqvarna 536LIXP - Electrical
SKU: 536lixp_electrical-group
Price: 1.07 GBP
Availability: InStock

Part No. 536lixp_electrical-group

Description

Husqvarna 536LIXP

Model Year -

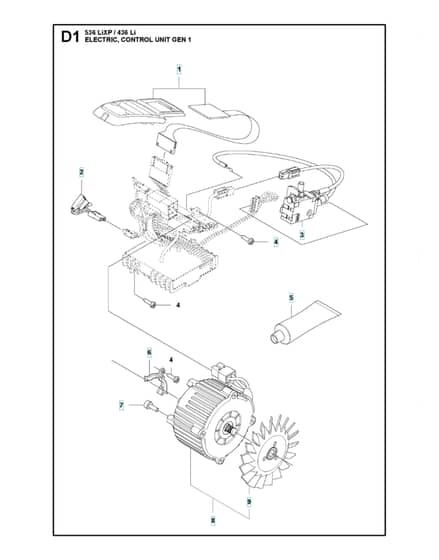

Electrical - Parts Diagram

	Part No.	Details
1	HV581 65 96-01 Available to backorder	Cover	£42.12 £35.10
2	HV577 82 77-01 Available to backorder	Wiring Assy	£21.16 £17.63
3	HV578 14 29-01 Available to backorder	Wiring Assy	£38.96 £32.47
4	HV525 88 74-01 Available to backorder	Screw Ccrpant	£1.28 £1.07
5	HV588 17 64-01 Available to backorder	Greasefor Application Instruction. See Sb-1500022	£21.16 £17.63
6	HV577 58 52-01 Available to backorder	Cover	£5.78 £4.82
7	HV503 20 25-12 Available to backorder	Screw Ihscm	£1.56 £1.30
8	HV577 31 58-02 Available to backorder	Motor Assycomplete With Fan	£155.76 £129.80
9	HV581 30 09-01 Available to backorder	Fan	£6.91 £5.76
