Husqvarna 536LIHD70X - Gears

Husqvarna 536LIHD70X - Gears

Part No. 536lihd70x_gears-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 536LIHD70X - Gears

Husqvarna 536LIHD70X - Gears

Description

Husqvarna 536LIHD70X

Model Year - -

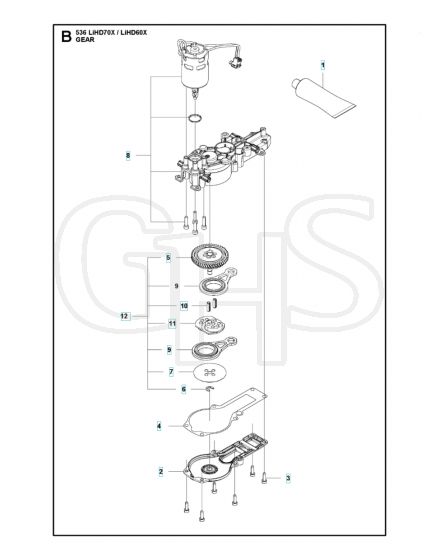

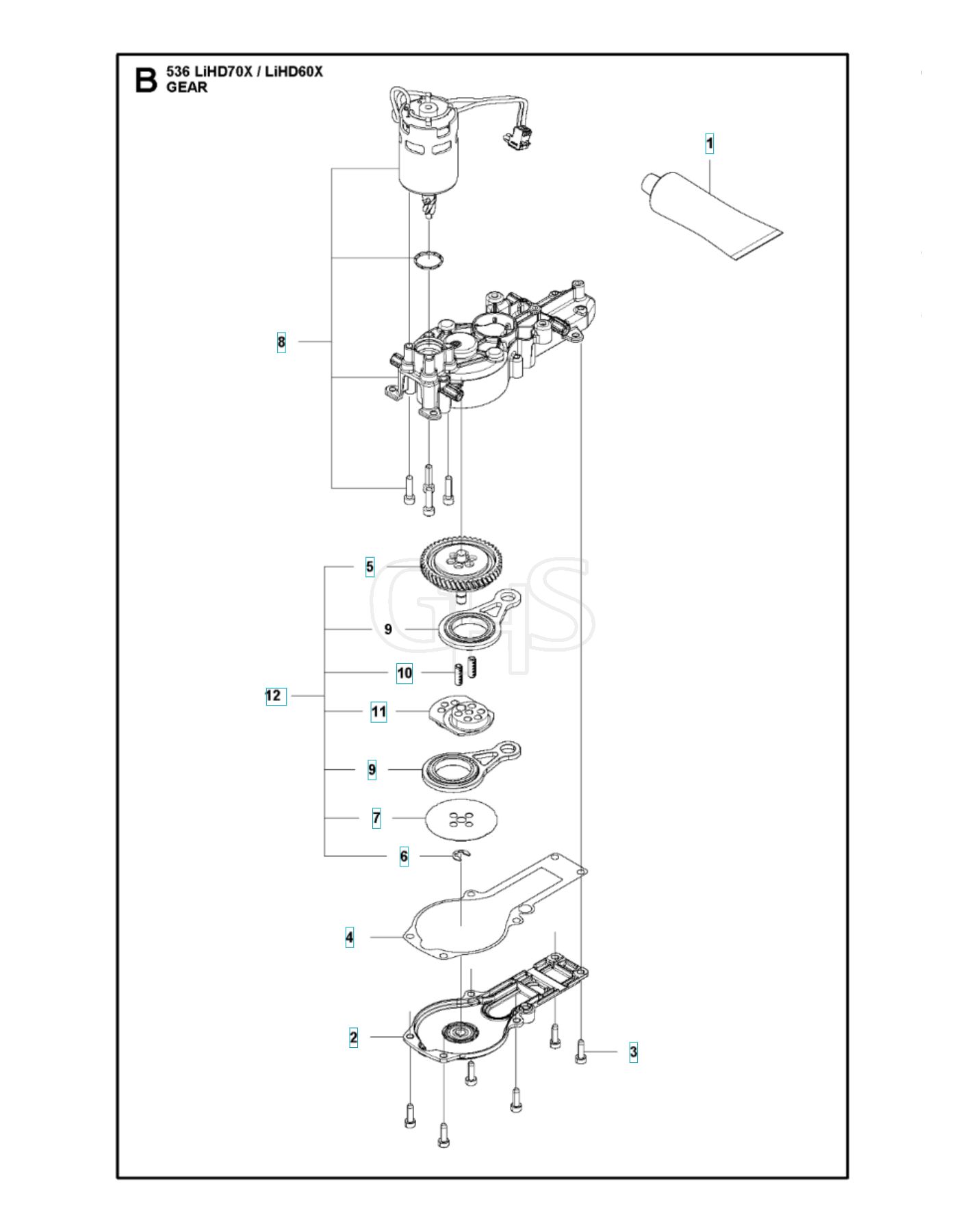

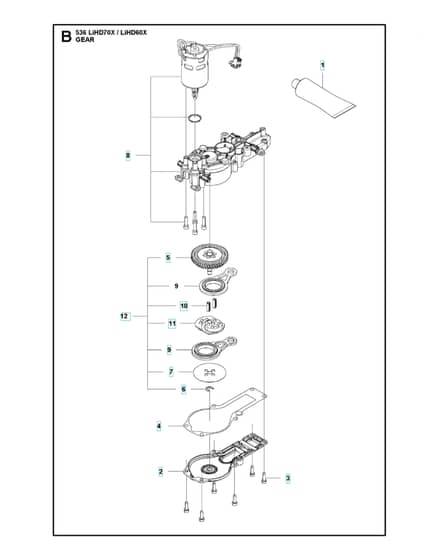

Gears - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV503 98 96-03 Available to backorder	Grease		£32.81 £27.34
	3		HV503 21 68-72 Available to backorder	Screw Ihsct		£2.05 £1.71
	4		HV584 41 10-01 Available to backorder	Gasket		£5.40 £4.50
	5		HV582 36 30-01 Available to backorder	Helical Gear		£90.24 £75.20
	6		HV578 05 49-01 Available to backorder	Lockwasher		£2.30 £1.92
	7		HV522 71 46-01 Available to backorder	Disc		£4.88 £4.07

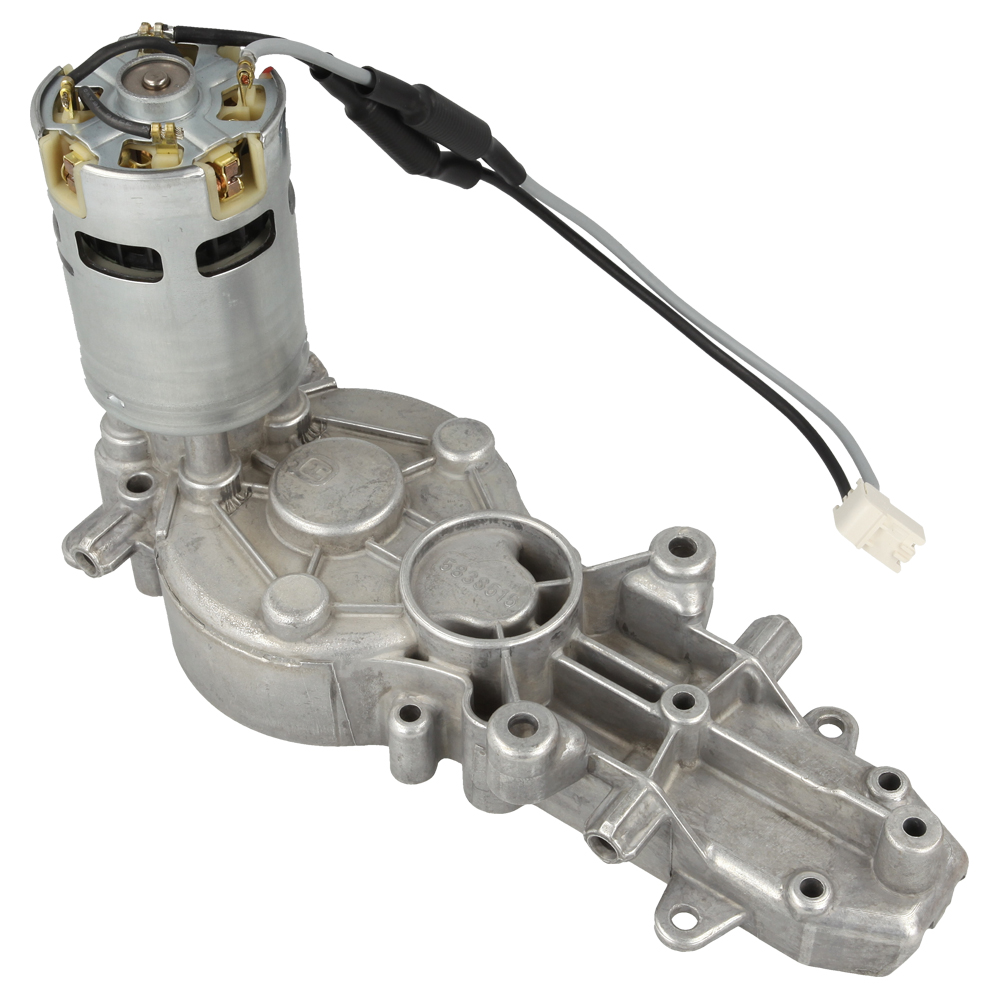

	8		HV582 38 67-01 Available to backorder	Motor Assy		£172.32 £143.60

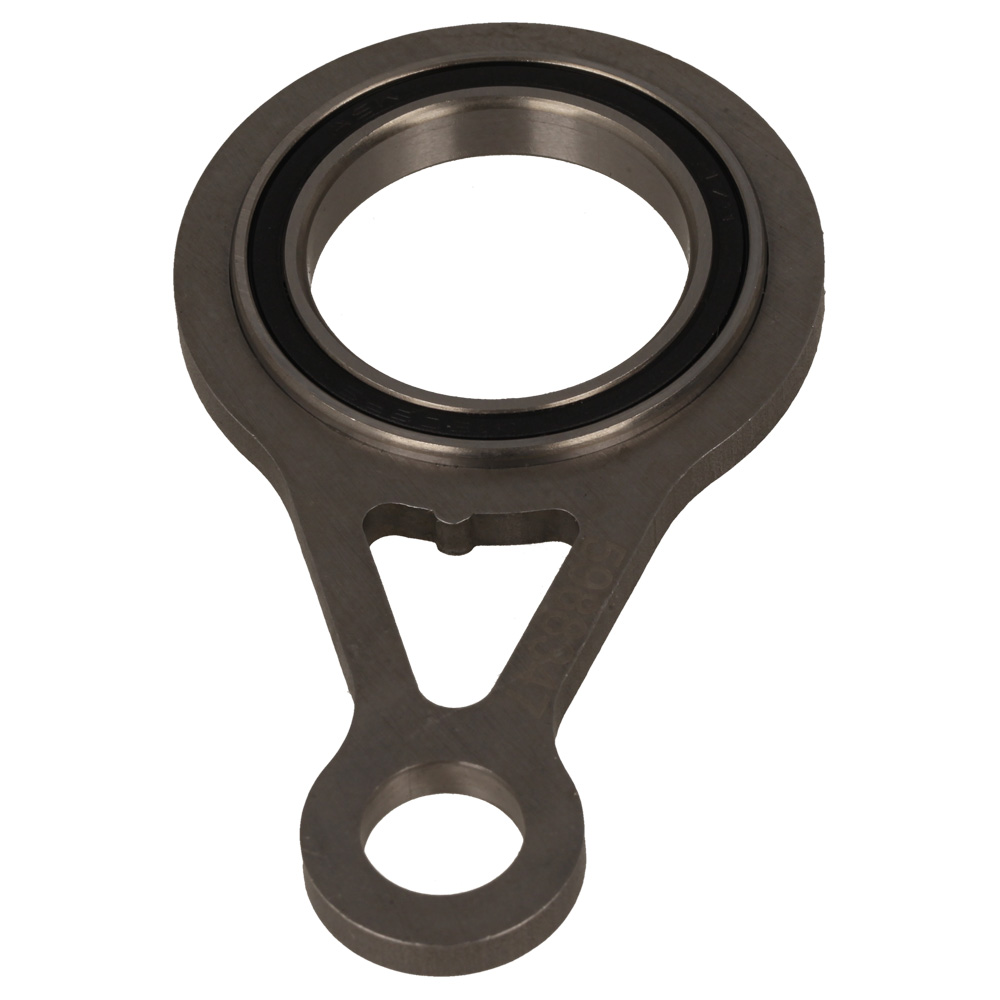

	9		HV531 12 77-01 Available to backorder	Connecting Rod Assy		£46.01 £38.34
	10		HV578 00 27-01 Available to backorder	Heavy Duty Dowel Pin		£1.40 £1.17
	11		HV581 83 85-01 Available to backorder	Eccentric Disc		£45.52 £37.93
	12		HV582 83 70-01 Available to backorder	Gear		£151.68 £126.40

Description

Husqvarna 536LIHD70X

Model Year - -

Gears - Parts Diagram
