Husqvarna 536LIHD60X - Housing

Husqvarna 536LIHD60X - Housing

Part No. 536lihd60x_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 536LIHD60X - Housing

Husqvarna 536LIHD60X - Housing

Description

Husqvarna 536LIHD60X

Model Year - -

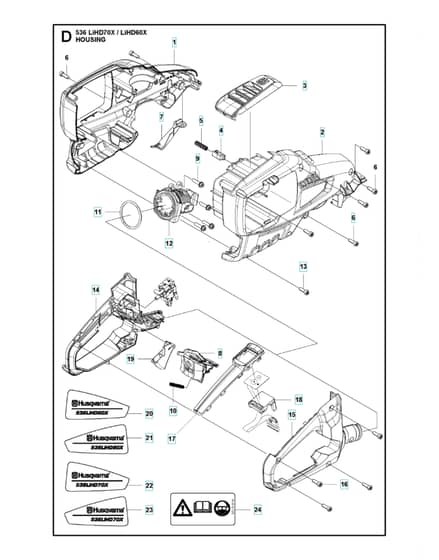

Housing - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV579 55 96-01 Available to backorder	Chassischassis Left		£35.26 £29.38
	2		HV579 55 97-01 Available to backorder	Chassischassis Right		£35.26 £29.38
	3		HV579 56 03-01 Available to backorder	Cover		£10.72 £8.93
	4		HV577 99 66-01 Available to backorder	Push Button		£3.32 £2.77
	5		HV577 99 65-01 Available to backorder	Spring		£3.46 £2.88
	6		HV503 21 74-16 Available to backorder	Screw Ihsct		£1.82 £1.52
	7		HV580 71 50-01 Available to backorder	Cover		£4.94 £4.12
	8		HV579 56 53-01 Available to backorder	Locking Button		£7.37 £6.14
	9		HV503 21 68-72 Available to backorder	Screw Ihsct		£2.05 £1.71
	10		HV584 27 00-01 Available to backorder	Recoil Spring		£3.89 £3.24
	11		HV575 23 20-02 Available to backorder	O-Ring		£1.81 £1.51
	12		HV579 56 01-01 Available to backorder	Handle Holder		£8.98 £7.48
	14		HV579 56 37-01 Available to backorder	Rear Handle		£25.00 £20.83
	15		HV579 56 38-01 Available to backorder	Rear Handle		£25.00 £20.83
	16		HV580 29 29-01 Available to backorder	Screw Ihsct		£2.28 £1.90
	17		HV579 56 54-01 Available to backorder	Frame		£11.38 £9.48
	18		HV580 71 95-01 Available to backorder	Bracket		£5.51 £4.59
	19		HV579 56 41-01 Available to backorder	Throttle Control		£8.69 £7.24
	20		HV581 66 29-01 Available to backorder	Decaldecal 60X		£3.48 £2.90
	21		HV581 66 28-01 Available to backorder	Decaldecal 60X		£3.48 £2.90
	22		HV581 66 29-02 Available to backorder	Decaldecal 70X		£3.48 £2.90
	23		HV581 66 28-02 Available to backorder	Decaldecal 70X		£3.48 £2.90

Description

Husqvarna 536LIHD60X

Model Year - -

Housing - Parts Diagram
