Husqvarna 535irxt/irx - Bevel Gear

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 535irxt/irx - Bevel Gear

Husqvarna 535irxt/irx - Bevel Gear

Description

Husqvarna 535irxt/irx

Model Year -

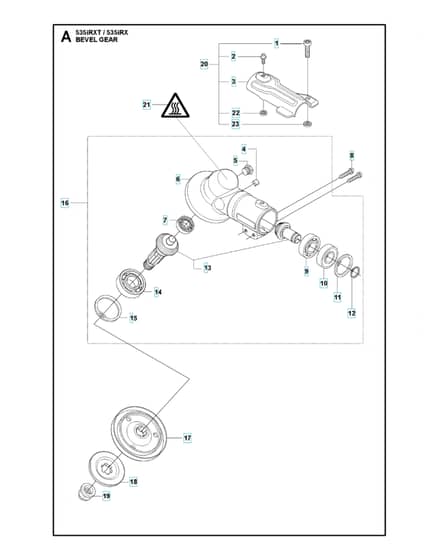

Bevel Gear - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	5		HV503 20 15-01 Available to backorder	Screw		£5.82 £4.85
	6		HV537 29 59-02 Available to backorder	Gear Housing		£89.92 £74.93
	7		HV738 21 99-00 Available to backorder	Ball Bearing		£6.36 £5.30
	8		HV525 75 51-04 Available to backorder	Screw Itxscfm		£1.64 £1.37
	9		HV738 21 01-10 Available to backorder	Ball Bearing		£6.36 £5.30
	10		HV738 21 01-12 Available to backorder	Ball Bearing		£6.48 £5.40
	11		HV735 31 28-10 Available to backorder	Circlip		£3.68 £3.07
	12		HV735 31 14-00 Available to backorder	Circlip		£0.77 £0.64
	13		HV505 13 33-01 Available to backorder	Spare Parts Kit		£50.34 £41.95
	14		HV503 25 28-01 Available to backorder	Ball Bearing		£7.28 £6.07
	15		HV735 31 31-10 Available to backorder	Circlip		£0.77 £0.64
	16		HV537 29 58-03 Available to backorder	Bevel Gear		£148.98 £124.15
	17		HV537 35 14-02 Available to backorder	Driver"(1"")"		£51.66 £43.05
	18		HV537 34 35-02 Available to backorder	Support Flange		£17.66 £14.72
	19		HV502 29 11-01 Available to backorder	Blade Nut		£5.68 £4.73
	21		HV544 84 33-01 Available to backorder	Label		£3.88 £3.23
	22		HV574 03 95-01 Available to backorder	Lock Nut		£1.56 £1.30
	23		HV574 40 44-01 Available to backorder	Lock Nut		£1.55 £1.29

Description

Husqvarna 535irxt/irx

Model Year -

Bevel Gear - Parts Diagram
