Husqvarna 535iRX - 967850605 - Accessories 01

Name: Husqvarna 535iRX - 967850605 - Accessories 01
SKU: 535iRX_967850605_JK_387612_HighResPng-group
Price: 3.75 GBP
Availability: InStock

Part No. 535iRX_967850605_JK_387612_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 535iRX - 967850605 - Accessories 01

Description

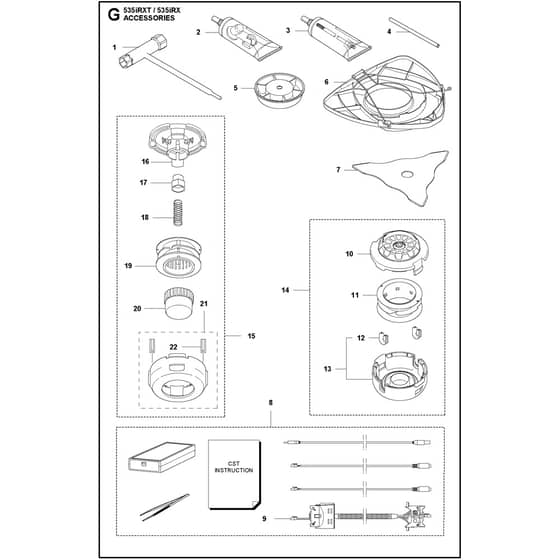

Husqvarna 535iRX - 967850605 - Accessories - Parts Diagram

	Part No.	Details
1	HV575 73 82-02 Available to backorder	Combination Wrench	£4.75 £3.96
2	HV503 97 64-01 In stock	Grease	£13.93 £11.61
3	HV535 56 00-01 Available to backorder	Grease	£9.85 £8.21
4	HV502 28 59-01 Available to backorder	Stop	£6.02 £5.02
5	HV503 89 01-02 In stock	Support Cup	£7.67 £6.39
6	HV544 35 91-01 Available to backorder	Transport Guard	£9.62 £8.02
8	HV583 89 71-01 Available to backorder	Diagnostic Tool Kit	£257.52 £214.60
9	HV579 62 13-01 Available to backorder	Wiring Assy	£27.73 £23.11
10	HV592 75 88-01 Available to backorder	Housing Assy	£18.31 £15.26
11	HV592 75 96-01 Available to backorder	Spool	£10.03 £8.36
12	HV595 01 51-01 Available to backorder	Eyelet (x 2)	£6.49 £5.41
13	HV592 75 97-01 Available to backorder	Cover Assy	£6.48 £5.40
14	HV594 72 70-01 Available to backorder	Trimmer Head (E35B iRXT)	£36.97 £30.81
15	HV578 44 64-01 Available to backorder	Trimmer Head (T35)	£24.00 £20.00
16	HV537 18 55-01 Available to backorder	Housing	£12.18 £10.15
17	HV537 18 61-02 Available to backorder	Adapter	£7.06 £5.88
18	HV537 18 60-01 Available to backorder	Spring	£4.50 £3.75
19	HV537 18 57-01 Available to backorder	Reel	£15.00 £12.50
20	HV537 18 58-01 Available to backorder	Knob	£7.18 £5.98
20	HV537 18 58-02 Available to backorder	Knob (30 pcs. box of 537185801)	£162.12 £135.10
21	HV544 04 44-02 Available to backorder	Lid	£13.69 £11.41
22	HV501 33 04-01 Available to backorder	Grommet (x 2)	£5.12 £4.27
22	HV501 33 04-03 Available to backorder	Grommet (50 pcs. plastic bag of 501330401)	£224.64 £187.20
