Husqvarna 525RXT Mark II - 970446701 - Shaft And Handle

Name: Husqvarna 525RXT Mark II - 970446701 - Shaft And Handle
SKU: 525RXT_Mark_II_970446701_JM_092266_HighResPng-group
Price: 1.49 GBP
Availability: InStock

Part No. 525RXT_Mark_II_970446701_JM_092266_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525RXT Mark II - 970446701 - Shaft And Handle

Description

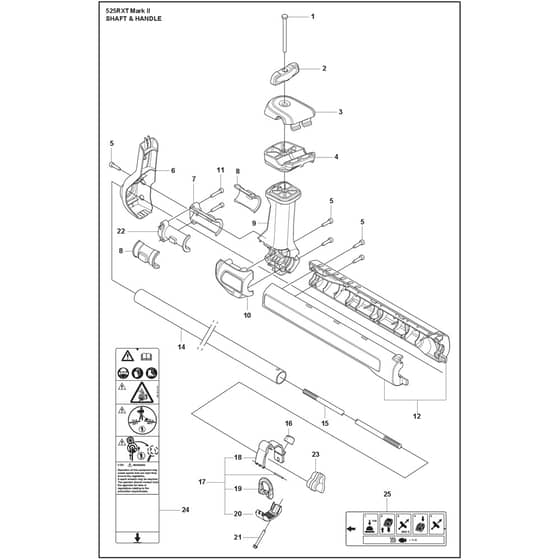

Husqvarna 525RXT Mark II - 970446701 - Shaft And Handle - Parts Diagram

	Part No.	Details
1	HV725 23 86-51 Available to backorder	Screw Ehhm (M6x60)	£6.01 £5.01
2	HV598 40 43-01 Available to backorder	Knob	£7.82 £6.52
3	HV536 02 84-01 In stock	Clamp	£10.61 £8.84
4	HV536 02 83-01 In stock	Clamp	£12.16 £10.13
5	HV525 76 46-04 Available to backorder	Screw Itxsct	£1.79 £1.49
6	HV598 78 54-01 Available to backorder	Cover	£7.68 £6.40
7	HV578 13 90-01 Available to backorder	Bracket	£7.82 £6.52
8	HV578 13 92-01 Available to backorder	Absorber	£8.98 £7.48
9	HV598 40 39-01 Available to backorder	Handlebar Bracket	£23.63 £19.69
10	HV598 40 41-01 Available to backorder	Cover	£12.40 £10.33
11	HV525 82 50-01 Available to backorder	Screw Itxscm	£2.08 £1.73
12	HV546 15 84-01 Available to backorder	Wear Protection	£18.31 £15.26
14	HV584 97 79-01 Available to backorder	Tube	£121.80 £101.50
25	HV579 56 23-01 Available to backorder	Decal	£3.06 £2.55
