Husqvarna 525RXT Mark II - 970446701 - Ignition System And Clutch

Name: Husqvarna 525RXT Mark II - 970446701 - Ignition System And Clutch
SKU: 525RXT_Mark_II_970446701_XP_300883_HighResPng-group
Price: 0.55 GBP
Availability: InStock

Part No. 525RXT_Mark_II_970446701_XP_300883_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525RXT Mark II - 970446701 - Ignition System And Clutch

Description

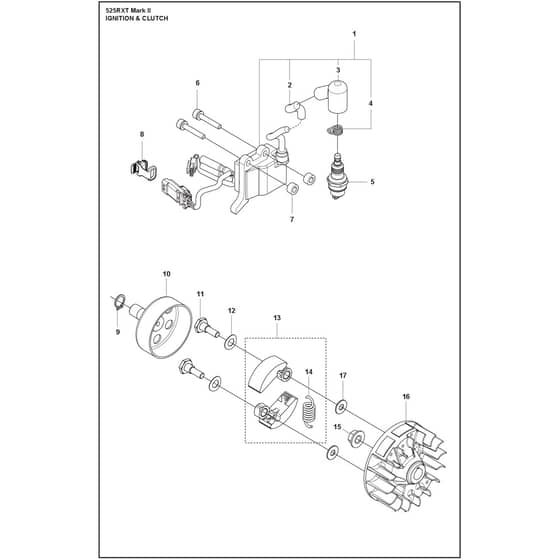

Husqvarna 525RXT Mark II - 970446701 - Ignition System And Clutch - Parts Diagram

	Part No.	Details
1	HV597 71 72-01 Available to backorder	Ignition Coil	£58.60 £48.83
2	HV597 71 78-01 Available to backorder	Tube	£3.54 £2.95
3	HV597 71 77-01 Available to backorder	Spark Plug Cap	£8.36 £6.97
4	HV597 71 76-01 Available to backorder	Spring	£3.06 £2.55
5	HV590 71 01-01 In stock	Spark Plug	£5.06 £4.22
6	HV521 51 58-01 Available to backorder	Bolt	£1.40 £1.17
7	HV588 17 14-01 Available to backorder	Spacer	£2.30 £1.92
8	HV531 06 76-01 Available to backorder	Plug	£3.54 £2.95
9	HV516 12 41-01 Available to backorder	Snap Ring	£0.66 £0.55
10	HV581 14 20-01 In stock	Clutch Drum	£44.42 £37.02
11	HV513 18 96-01 Available to backorder	Screw	£3.40 £2.83
12	HV521 75 82-01 Available to backorder	Washer	£2.30 £1.92
13	HV585 83 47-01 In stock	Clutch Assy	£63.86 £53.22
14	HV576 40 07-01 Available to backorder	Clutch Spring	£6.10 £5.08
15	HV504 11 80-01 Available to backorder	Nut	£2.69 £2.24
16	HV578 96 78-01 Available to backorder	Flywheel	£60.98 £50.82
17	HV505 05 44-01 Available to backorder	Washer	£2.30 £1.92
