Husqvarna 525RXT Mark II - 970446701 - Cylinder Piston

Name: Husqvarna 525RXT Mark II - 970446701 - Cylinder Piston
SKU: 525RXT_Mark_II_970446701_SA_272512_HighResPng-group
Price: 0.57 GBP
Availability: InStock

Part No. 525RXT_Mark_II_970446701_SA_272512_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525RXT Mark II - 970446701 - Cylinder Piston

Description

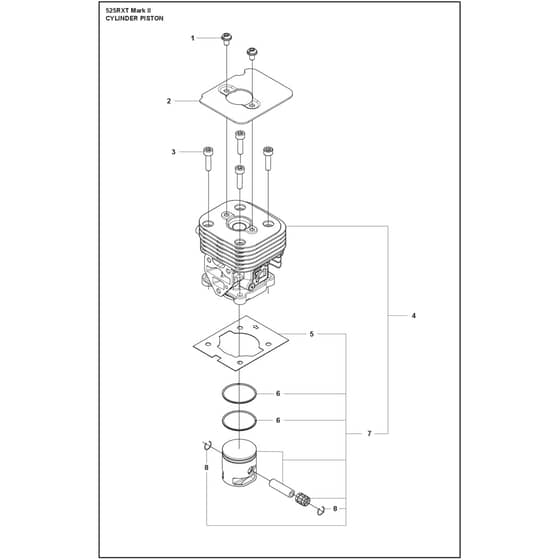

Husqvarna 525RXT Mark II - 970446701 - Cylinder Piston - Parts Diagram

	Part No.	Details
1	HV544 25 68-01 Available to backorder	Screw	£1.45 £1.21
2	HV597 71 69-01 Available to backorder	Plate	£14.75 £12.29
3	HV504 11 43-01 Available to backorder	Screw	£2.05 £1.71
4	HV588 09 82-02 Available to backorder	Service Kit (Cylinder & Piston)	£152.88 £127.40
5	HV576 39 87-02 Available to backorder	Gasket	£5.59 £4.66
6	HV506 61 81-01 Available to backorder	Ring	£6.85 £5.71
7	HV588 09 81-02 Available to backorder	Service Kit (Piston kit)	£47.23 £39.36
8	HV505 04 52-01 Available to backorder	Ring	£0.68 £0.57
