Husqvarna 525RXT Mark II - 970446701 - Carburetor And Air Filter

Name: Husqvarna 525RXT Mark II - 970446701 - Carburetor And Air Filter
SKU: 525RXT_Mark_II_970446701_TQ_826266_HighResPng-group
Price: 1.71 GBP
Availability: InStock

Part No. 525RXT_Mark_II_970446701_TQ_826266_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525RXT Mark II - 970446701 - Carburetor And Air Filter

Description

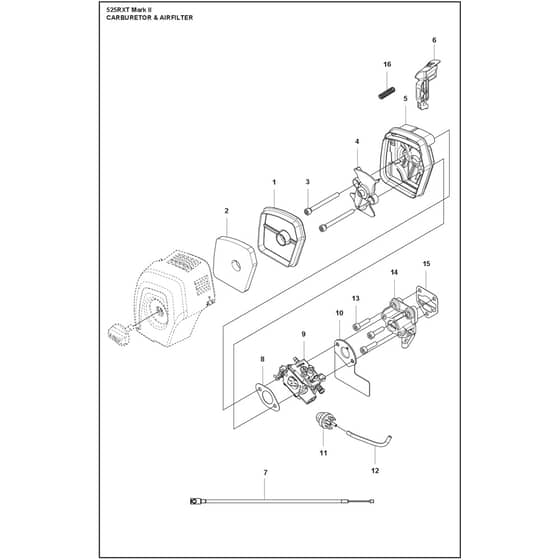

Husqvarna 525RXT Mark II - 970446701 - Carburetor And Air Filter - Parts Diagram

	Part No.	Details
1	HV597 71 96-01 In stock	Air Filter	£20.16 £16.80
2	HV597 71 97-01 In stock	Air Filter	£7.73 £6.44
3	HV580 46 72-01 Available to backorder	Bolt	£2.05 £1.71
4	HV598 56 71-01 Available to backorder	Plate	£5.66 £4.72
5	HV597 69 76-01 Available to backorder	Filter Housing	£7.68 £6.40
6	HV597 71 94-01 Available to backorder	Choke Control	£6.52 £5.43
7	HV578 86 43-01 In stock	Throttle Cable	£15.25 £12.71
8	HV577 88 24-02 In stock	Gasket	£4.92 £4.10
9	HV597 69 73-02 Available to backorder	Carburettor	£61.08 £50.90
10	HV599 39 36-01 Available to backorder	Gasket	£15.06 £12.55
11	HV503 93 66-01 In stock	Purge	£15.11 £12.59
12	HV577 05 05-01 Available to backorder	Pipe	£8.81 £7.34
13	HV504 11 43-01 Available to backorder	Screw	£2.05 £1.71
14	HV597 71 80-01 Available to backorder	Insulator	£21.26 £17.72
15	HV576 39 89-01 Available to backorder	Gasket	£4.63 £3.86
16	HV599 37 30-01 Available to backorder	Spring	£3.12 £2.60
