Husqvarna 525RXT - Cylinder, Piston & Muffler

Name: Husqvarna 525RXT - Cylinder, Piston & Muffler
SKU: 525rxt_cylinder_piston_muffler-group
Price: 0.57 GBP
Availability: InStock

Part No. 525rxt_cylinder_piston_muffler-group

Description

Husqvarna 525RXT

Model Year -

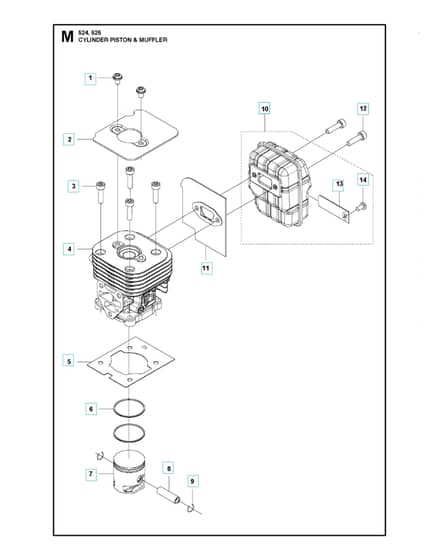

Cylinder, Piston & Muffler - Parts Diagram

	Part No.	Details
1	HV544 25 68-01 Available to backorder	Screw	£1.45 £1.21
2	HV578 78 53-01 Available to backorder	Plate	£12.18 £10.15
4	HV577 97 90-05 Available to backorder	Cylinder	£70.44 £58.70
5	HV576 39 87-02 Available to backorder	Gasket	£5.59 £4.66
6	HV506 61 81-01 Available to backorder	Ring	£6.85 £5.71
7	HV577 91 74-01 Available to backorder	Piston	£79.08 £65.90
8	HV505 04 07-01 Available to backorder	Pin	£6.31 £5.26
9	HV505 04 52-01 Available to backorder	Ring	£0.68 £0.57
10	HV585 03 29-01 Available to backorder	Muffler Assyaustralia / New Zealand	£62.64 £52.20
11	HV578 40 81-01 Available to backorder	Gasket	£12.48 £10.40
12	HV504 11 43-01 Available to backorder	Screw	£2.05 £1.71
13	HV580 51 44-01 Available to backorder	Spark Arrester	£5.84 £4.87
14	HV729 57 74-05 Available to backorder	Screw Crpant	£1.31 £1.09
