Husqvarna 525RX Mark II - 970446601 - Throttle Controls

Name: Husqvarna 525RX Mark II - 970446601 - Throttle Controls
SKU: 525RX_Mark_II_970446601_XL_001764_HighResPng-group
Price: 0.75 GBP
Availability: InStock

Part No. 525RX_Mark_II_970446601_XL_001764_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525RX Mark II - 970446601 - Throttle Controls

Description

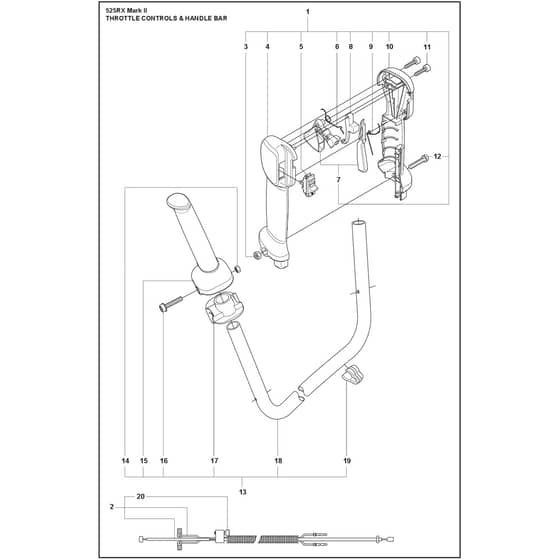

Husqvarna 525RX Mark II - 970446601 - Throttle Controls - Parts Diagram

	Part No.	Details
2	HV578 24 81-02 Available to backorder	Wiring	£46.32 £38.60
3	HV503 22 10-13 Available to backorder	Hexagon Nut	£2.09 £1.74
4	HV537 16 02-03 Available to backorder	Handle Half	£21.78 £18.15
5	HV537 41 90-01 In stock	Switch	£15.30 £12.75
6	HV537 17 42-01 Available to backorder	Spring	£3.12 £2.60
7	HV506 49 77-01 Available to backorder	Throttle Control	£8.34 £6.95
8	HV537 16 07-03 Available to backorder	Throttle Lockout	£6.46 £5.38
9	HV537 17 43-01 Available to backorder	Spring	£3.31 £2.76
10	HV537 16 03-01 Available to backorder	Handle Half	£20.66 £17.22
11	HV574 44 40-01 Available to backorder	Screw Itxsct	£1.40 £1.17
12	HV525 75 51-09 Available to backorder	Screw Itxscfm	£2.28 £1.90
14	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
15	HV537 17 28-02 Available to backorder	Handle	£12.82 £10.68
16	HV525 75 52-04 Available to backorder	Screw Itxscfm	£2.83 £2.36
17	HV537 17 29-01 Available to backorder	Cover	£5.78 £4.82
19	HV502 21 12-01 Available to backorder	Staple	£0.90 £0.75
20	HV503 21 66-18 Available to backorder	Screw Ihsct	£1.79 £1.49
