Husqvarna 525RX Mark II - 970446601 - Shaft And Handle

Description

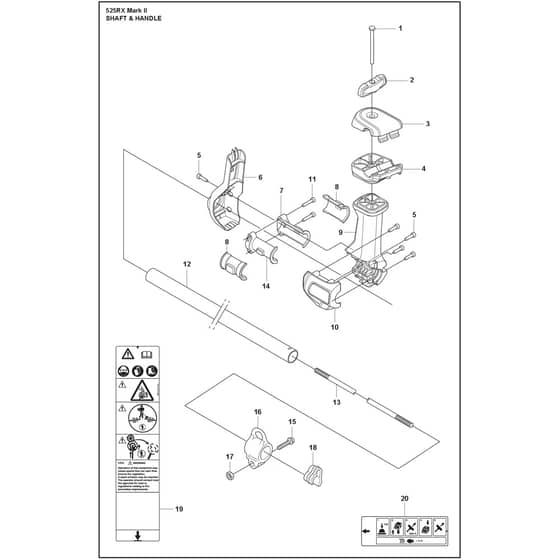

Husqvarna 525RX Mark II - 970446601 - Shaft And Handle - Parts Diagram

	Part No.	Details
1	HV725 23 86-51 Available to backorder	Screw Ehhm	£6.01 £5.01
2	HV598 40 43-01 Available to backorder	Knob	£7.82 £6.52
3	HV536 02 84-01 In stock	Clamp	£10.61 £8.84
4	HV536 02 83-01 In stock	Clamp	£12.16 £10.13
5	HV525 76 46-04 Available to backorder	Screw Itxsct	£1.79 £1.49
6	HV598 78 54-01 Available to backorder	Cover	£7.68 £6.40
7	HV578 13 90-01 Available to backorder	Bracket	£7.82 £6.52
8	HV578 13 92-01 Available to backorder	Absorber	£8.98 £7.48
9	HV598 40 39-01 Available to backorder	Handlebar Bracket	£23.63 £19.69
10	HV598 40 41-01 Available to backorder	Cover	£12.40 £10.33
11	HV525 82 50-01 Available to backorder	Screw Itxscm	£2.08 £1.73
12	HV584 97 79-01 Available to backorder	Tube	£121.80 £101.50
13	HV581 81 51-01 In stock	Drive Shaft	£74.36 £61.97
14	HV578 13 91-01 Available to backorder	Bracket	£7.82 £6.52
15	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
16	HV503 94 10-01 Available to backorder	Hook	£8.34 £6.95
17	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
18	HV502 21 12-01 Available to backorder	Staple	£0.90 £0.75
19	HV589 29 51-01 Available to backorder	Label	£8.98 £7.48
20	HV579 56 23-01 Available to backorder	Decal	£3.06 £2.55
