Husqvarna 525RX Mark II - 970446601 - Ignition System And Clutch

Description

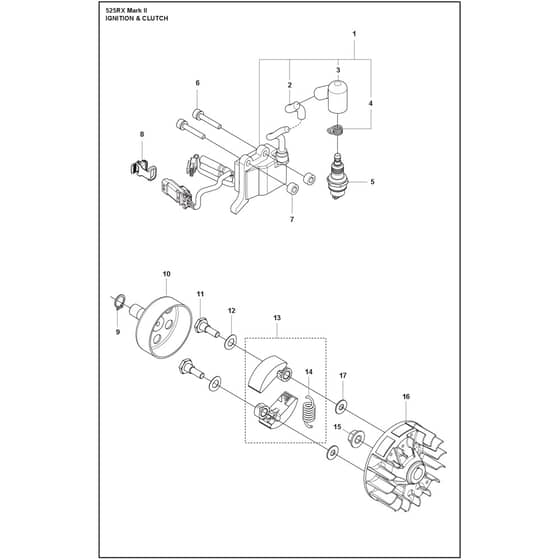

Husqvarna 525RX Mark II - 970446601 - Ignition System And Clutch - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV597 71 72-01 Available to backorder	Ignition Coil	£58.60 £48.83
2	HV597 71 78-01 Available to backorder	Tube	£3.54 £2.95
3	HV597 71 77-01 Available to backorder	Spark Plug Cap	£8.36 £6.97
4	HV597 71 76-01 Available to backorder	Spring	£3.07 £2.56
5	HV590 71 01-01 Available to backorder	Spark Plug	£3.26 £2.72
6	HV521 51 58-01 Available to backorder	Bolt	£1.42 £1.18
7	HV588 17 14-01 Available to backorder	Spacer	£2.34 £1.95
8	HV531 06 76-01 Available to backorder	Plug	£3.54 £2.95
9	HV516 12 41-01 Available to backorder	Snap Ring	£0.64 £0.53
10	HV581 14 20-01 Available to backorder	Clutch Drum	£46.06 £38.38
11	HV513 18 96-01 Available to backorder	Screw	£3.36 £2.80
12	HV521 75 82-01 Available to backorder	Washer	£2.34 £1.95
13	HV585 83 47-01 Available to backorder	Clutch Assy	£66.22 £55.18
14	HV576 40 07-01 Available to backorder	Clutch Spring	£6.04 £5.03
15	HV504 11 80-01 Available to backorder	Nut	£2.72 £2.27
16	HV578 96 78-01 Available to backorder	Flywheel	£61.58 £51.32
17	HV505 05 44-01 Available to backorder	Washer	£2.34 £1.95
