Husqvarna 525LK - 967148301 - Starter

Name: Husqvarna 525LK - 967148301 - Starter
SKU: 525LK_967148301_CQ_275274_HighResPng-group
Price: 0.6 GBP
Availability: InStock

Part No. 525LK_967148301_CQ_275274_HighResPng-group

Description

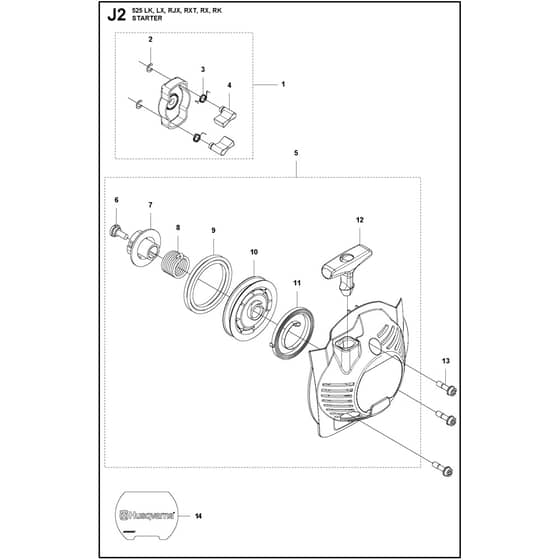

Husqvarna 525LK - 967148301 - Starter - Parts Diagram

	Part No.	Details
1	HV596 33 04-01 Available to backorder	Starter Pulley Assy	£15.54 £12.95
2	HV501 93 90-01 Available to backorder	Clip	£0.72 £0.60
3	HV596 33 08-01 Available to backorder	Spring	£3.06 £2.55
4	HV596 33 05-01 Available to backorder	Ratchet	£0.83 £0.69
5	HV577 84 92-01 Available to backorder	Starter Assy	£73.44 £61.20
5	HV596 24 90-01 Available to backorder	Starter Assy (US)	£38.48 £32.07
6	HV521 60 00-01 Available to backorder	Screw	£2.21 £1.84
7	HV576 40 12-01 Available to backorder	Pulley (Not needed for US model)	£7.79 £6.49
8	HV577 13 41-01 Available to backorder	Spring (Not needed for US model)	£6.29 £5.24
9	HV577 84 87-01 Available to backorder	Rope	£5.18 £4.32
9	HV596 24 89-01 Available to backorder	Rope (US)	£4.78 £3.98
10	HV596 24 77-01 Available to backorder	Starter Pulley (US)	£13.14 £10.95
10	HV577 84 88-01 Available to backorder	Reel	£12.32 £10.27
11	HV596 24 86-01 Available to backorder	Spring	£12.48 £10.40
12	HV575 48 95-01 Available to backorder	Starter Handle	£7.45 £6.21
13	HV577 81 54-01 Available to backorder	Bolt	£2.09 £1.74
14	HV596 44 89-01 Available to backorder	Decal	£3.22 £2.68
