Husqvarna 525LK - 967148301 - Shaft

Name: Husqvarna 525LK - 967148301 - Shaft
SKU: 525LK_967148301_FG_959423_HighResPng-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

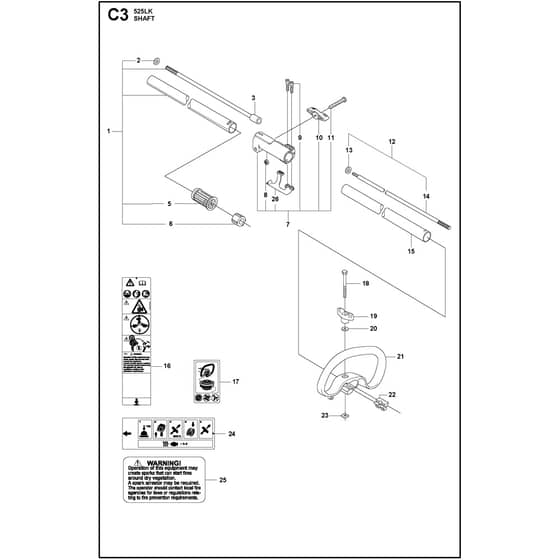

Husqvarna 525LK - 967148301 - Shaft - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV579 19 95-01 Available to backorder	Tube	£60.40 £50.33
3	HV587 41 17-01 Available to backorder	Drive Shaft	£77.84 £64.87
5	HV587 41 46-01 Available to backorder	Plug	£0.48 £0.40
6	HV503 78 52-02 Available to backorder	Supporting Bearing	£6.23 £5.19
7	HV576 28 26-01 Available to backorder	Clamping Sleeve Assy	£31.72 £26.43
8	HV731 23 16-01 Available to backorder	Hexagon Nut	£1.50 £1.25
9	HV525 75 51-04 Available to backorder	Screw Itxscfm	£1.64 £1.37
10	HV576 28 24-01 Available to backorder	Knob	£5.30 £4.42
11	HV725 23 76-51 Available to backorder	Screw Ehhm	£2.28 £1.90
12	HV581 50 04-01 Available to backorder	Drive Shaft	£60.40 £50.33
13	HV735 58 08-10 Available to backorder	Lockwasher	£0.77 £0.64
14	HV581 81 51-02 Available to backorder	Drive Shaft (L.696 Ø7mm)	£64.42 £53.68
15	HV579 19 94-01 Available to backorder	Tube (L.650 Ø24mm)	£60.40 £50.33
16	HV589 29 51-01 Available to backorder	Label	£9.06 £7.55
17	HV501 08 18-10 Available to backorder	Label	£3.62 £3.02
18	HV510 90 61-01 Available to backorder	Bolt (RJD. (LK USA) M6x35)	£3.62 £3.02
18	HV725 23 80-51 Available to backorder	Screw Ehhm (LK M6x50)	£3.54 £2.95
19	HV503 87 90-01 Available to backorder	Knob (LK)	£5.68 £4.73
20	HV503 23 00-61 Available to backorder	Washer (LK)	£2.52 £2.10
21	HV503 87 19-08 Available to backorder	Handle	£47.30 £39.42
22	HV503 94 03-01 Available to backorder	Distance	£6.18 £5.15
23	HV502 19 71-01 Available to backorder	Square Nut	£4.82 £4.02
24	HV579 56 23-01 Available to backorder	Decal	£3.07 £2.56
25	HV522 92 86-02 Available to backorder	Label	£3.24 £2.70
26	HV576 28 23-01 Available to backorder	Locking Plate	£7.22 £6.02
