Husqvarna 525HE4 - Throttle Controls

Husqvarna 525HE4 - Throttle Controls

Part No. 525he4_throttle_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 525HE4 - Throttle Controls

Husqvarna 525HE4 - Throttle Controls

Description

Husqvarna 525HE4

Model Year - -

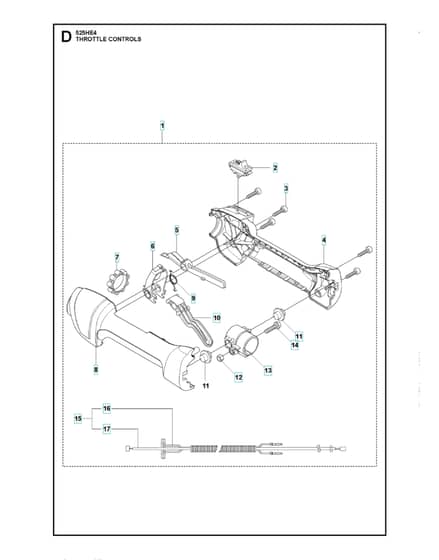

Throttle Controls - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV578 27 95-02 Available to backorder	Throttle Control		£68.76 £57.30
	2		HV537 41 90-01 In stock	Switch		£15.30 £12.75
	3		HV575 96 05-01 Available to backorder	Screw Ihsct		£1.28 £1.07
	4		HV544 10 02-02 Available to backorder	Handle Half		£26.28 £21.90
	5		HV503 87 80-01 Available to backorder	Throttle Lockout		£7.06 £5.88
	6		HV503 91 81-01 Available to backorder	Throttle Lever		£8.34 £6.95
	7		HV503 96 14-01 Available to backorder	Absorber		£5.42 £4.52
	8		HV544 10 03-02 Available to backorder	Handle Half		£28.84 £24.03
	9		HV544 10 08-01 Available to backorder	Recoil Spring		£3.46 £2.88
	10		HV503 87 79-03 Available to backorder	Throttle Trigger		£8.32 £6.93
	11		HV544 10 17-02 Available to backorder	Damper		£7.99 £6.66
	12		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	13		HV544 11 21-01 Available to backorder	Retainer		£3.24 £2.70
	14		HV506 68 90-01 Available to backorder	Bolt		£2.05 £1.71
	15		HV578 27 96-01 Available to backorder	Wiring		£47.41 £39.51
	16		HV502 53 16-01 Available to backorder	Short Circuit Cable		£19.21 £16.01
	17		HV578 86 78-01 In stock	Throttle Cable		£15.60 £13.00

Description

Husqvarna 525HE4

Model Year - -

Throttle Controls - Parts Diagram
