Husqvarna 525Es - Cylinder, Piston & Muffler

Husqvarna 525Es - Cylinder, Piston & Muffler

Description

Husqvarna 525Es

Model Year -

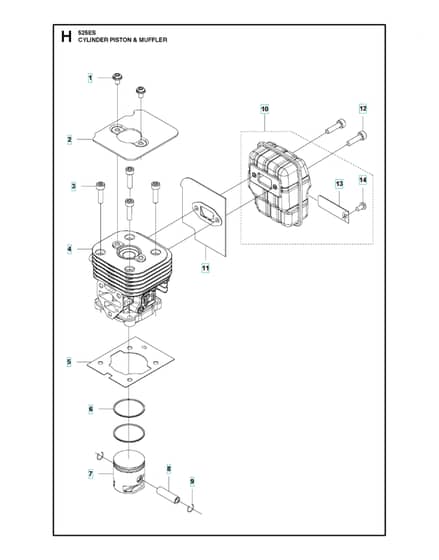

Cylinder, Piston & Muffler - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV544 25 68-01 Available to backorder	Screw		£1.45 £1.21
	2		HV578 78 53-01 Available to backorder	Plate		£12.18 £10.15
	4		HV577 97 90-05 Available to backorder	Cylinder		£70.44 £58.70
	5		HV576 39 87-02 Available to backorder	Gasket		£5.59 £4.66
	6		HV506 61 81-01 Available to backorder	Ring		£6.85 £5.71
	7		HV577 91 74-01 Available to backorder	Piston		£79.08 £65.90
	8		HV505 04 07-01 Available to backorder	Pin		£6.31 £5.26
	9		HV505 04 52-01 Available to backorder	Ring		£0.68 £0.57
	11		HV578 40 81-01 Available to backorder	Gasket		£12.48 £10.40
	12		HV504 11 43-01 Available to backorder	Screw		£2.05 £1.71
	13		HV580 51 44-01 Available to backorder	Spark Arrester		£5.84 £4.87
	14		HV729 57 74-05 Available to backorder	Screw Crpant		£1.31 £1.09

Description

Husqvarna 525Es

Model Year -

Cylinder, Piston & Muffler - Parts Diagram
