Husqvarna 522iHDR60 - 970466202 - Cutting Equipment

Name: Husqvarna 522iHDR60 - 970466202 - Cutting Equipment
SKU: 522iHDR60_970466202_NJ_228681_HighResPng-group
Price: 1.56 GBP
Availability: InStock

Part No. 522iHDR60_970466202_NJ_228681_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 522iHDR60 - 970466202 - Cutting Equipment

Description

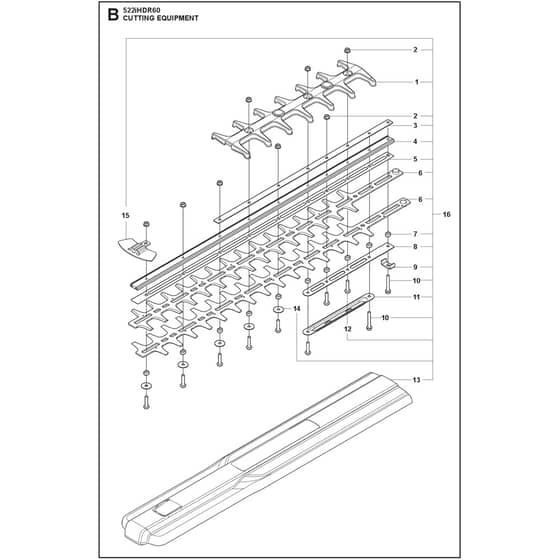

Husqvarna 522iHDR60 - 970466202 - Cutting Equipment - Parts Diagram

	Part No.	Details
1	HV590 64 57-01 Available to backorder	Protector Bar	£12.64 £10.53
2	HV592 75 13-01 Available to backorder	Nut	£1.87 £1.56
3	HV592 84 87-01 Available to backorder	Bar Plate	£60.68 £50.57
4	HV590 32 71-01 Available to backorder	Guide Bar	£106.56 £88.80
5	HV590 32 75-01 Available to backorder	Wear Plate	£84.24 £70.20
6	HV597 68 62-01 Available to backorder	Blade	£94.32 £78.60
7	HV597 66 15-02 Available to backorder	Spacer	£2.52 £2.10
8	HV590 32 82-01 Available to backorder	Bar Plate	£30.79 £25.66
9	HV590 33 93-01 Available to backorder	Bracket	£6.62 £5.52
10	HV525 75 51-03 Available to backorder	Screw Itxscfm	£2.40 £2.00
11	HV592 88 94-01 Available to backorder	Bar Plate	£22.28 £18.57
12	HV592 73 25-01 Available to backorder	Screw	£2.54 £2.12
13	HV590 65 14-05 Available to backorder	Transport Guard	£36.14 £30.12
14	HV592 73 81-01 Available to backorder	Washer	£2.81 £2.34
15	HV590 71 26-01 Available to backorder	Protection	£8.48 £7.07
16	HV597 73 98-01 Available to backorder	Cutting System	£123.48 £102.90
