Husqvarna 522HDR75X - 967658401 - Gear Housing

Name: Husqvarna 522HDR75X - 967658401 - Gear Housing
SKU: 522HDR75X_967658401_CJ_533184_HighResPng-group
Price: 0.9 GBP
Availability: InStock

Part No. 522HDR75X_967658401_CJ_533184_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 522HDR75X - 967658401 - Gear Housing

Description

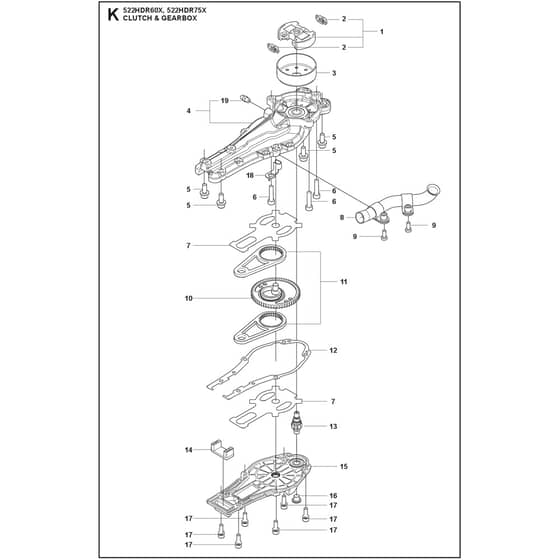

Husqvarna 522HDR75X - 967658401 - Gear Housing - Parts Diagram

	Part No.	Details
1	HV582 19 31-01 Available to backorder	Clutch Assy	£50.92 £42.43
2	HV590 81 96-01 Available to backorder	Clutch Spring	£5.63 £4.69
3	HV590 53 64-02 Available to backorder	Clutch Drum	£36.85 £30.71
4	HV597 37 17-01 Available to backorder	Gear Housing Assy	£68.04 £56.70
5	HV576 59 08-01 Available to backorder	Bolt	£1.08 £0.90
6	HV544 21 84-03 Available to backorder	Screw Itxscm	£2.05 £1.71
7	HV590 53 69-01 Available to backorder	Plate	£6.62 £5.52
9	HV525 75 51-01 Available to backorder	Screw Itxscfm	£1.97 £1.64
10	HV593 65 14-01 Available to backorder	Gear	£54.58 £45.48
11	HV597 02 17-01 Available to backorder	Rod	£75.00 £62.50
12	HV590 53 77-01 Available to backorder	Gasket	£8.32 £6.93
13	HV590 53 66-01 Available to backorder	Gear	£14.75 £12.29
14	HV590 53 71-01 Available to backorder	Sealing	£4.45 £3.71
15	HV597 37 18-01 Available to backorder	Gear Housing Assy	£48.19 £40.16
16	HV590 64 94-01 Available to backorder	Screw Plug	£2.05 £1.71
17	HV575 70 10-01 Available to backorder	Screw	£2.05 £1.71
18	HV593 82 11-01 Available to backorder	Wire Holder	£5.14 £4.28
19	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.09 £9.24
