520iHT4 - 967971203 - Hedge Trimmer Parts
Husqvarna 520iHT4 - 967971203 - Tube

Husqvarna 520iHT4 - 967971203 - Tube

Part No. 520iHT4_967971203_DX_275772_HighResPng-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 520iHT4 - 967971203 - Tube

Husqvarna 520iHT4 - 967971203 - Tube

Description

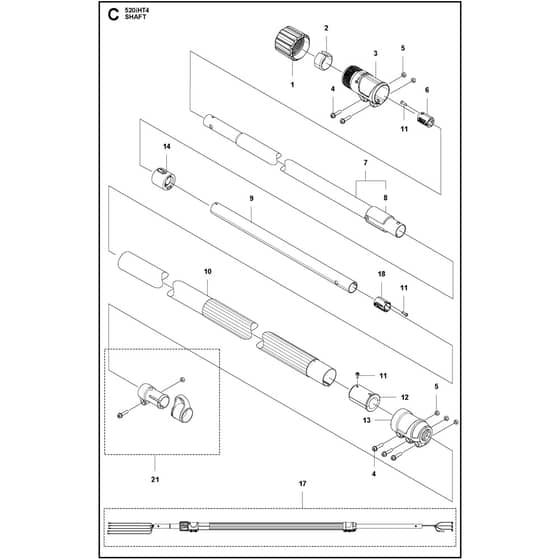

Husqvarna 520iHT4 - 967971203 - Tube - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV510 09 61-01 Available to backorder	Nut		£6.23 £5.19
	2		HV522 74 26-01 Available to backorder	Ring		£2.20 £1.83
	3		HV597 19 43-01 Available to backorder	Clamping Sleeve		£15.94 £13.28
	4		HV525 75 51-02 Available to backorder	Screw Itxscfm		£1.67 £1.39
	5		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	6		HV586 87 30-01 Available to backorder	Spacer		£3.80 £3.17
	7		HV599 26 11-01 Available to backorder	Tube Assy		£65.28 £54.40
	8		HV587 00 48-01 Available to backorder	Guide Bushing		£8.34 £6.95
	9		HV597 26 77-01 Available to backorder	Tube		£65.28 £54.40
	12		HV587 73 06-01 Available to backorder	Sleeve		£12.18 £10.15
	13		HV522 59 70-01 Available to backorder	Clamping Sleeve		£10.37 £8.64
	14		HV597 26 82-01 Available to backorder	Bushing		£7.22 £6.02
	17		HV597 26 72-01 Available to backorder	Tube Assy		£151.44 £126.20
	18		HV597 79 81-01 Available to backorder	Spacer		£4.32 £3.60
	21		HV522 92 08-02 Available to backorder	Cord Bracket		£13.46 £11.22

Description

Husqvarna 520iHT4 - 967971203 - Tube - Parts Diagram
