Husqvarna 450X NERA - 970535303 - Wheels And Tires

Name: Husqvarna 450X NERA - 970535303 - Wheels And Tires
SKU: 450X_NERA_970535303_DE_205972_HighResPng-group
Price: 1.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 450X NERA - 970535303 - Wheels And Tires

Description

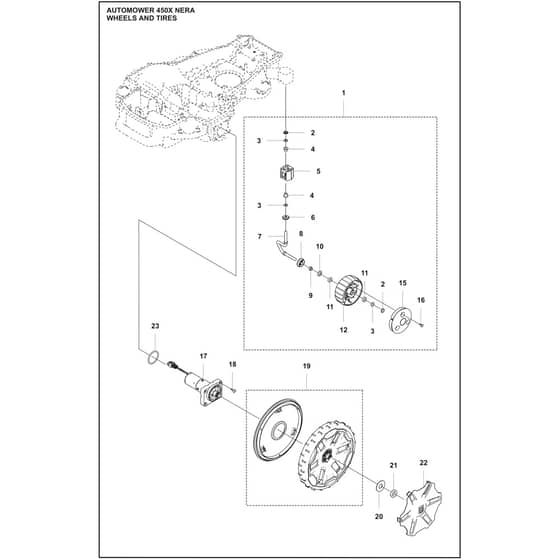

Husqvarna 450X NERA - 970535303 - Wheels And Tires - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV536 11 97-02 Available to backorder	Wheel Assy (Front wheel assy)	£43.31 £36.09
2	HV576 01 93-02 Available to backorder	Lockwasher (Washer)	£1.68 £1.40
3	HV580 76 46-01 Available to backorder	Washer (Washer)	£2.34 £1.95
4	HV535 29 38-01 Available to backorder	Bushing (Bushing)	£7.10 £5.92
5	HV531 26 43-01 Available to backorder	Socket (Socket)	£2.26 £1.88
6	HV536 66 19-01 Available to backorder	Shield (Shield)	£2.14 £1.78
7	HV531 26 33-02 Available to backorder	Spindle (Spindle)	£14.45 £12.04
8	HV531 26 42-01 Available to backorder	Shield (Shield)	£2.36 £1.97
9	HV580 41 20-01 Available to backorder	Sleeve (Sleeve)	£6.91 £5.76
10	HV580 48 71-01 Available to backorder	Sealing (Sealing)	£5.82 £4.85
11	HV580 60 51-01 Available to backorder	Ball Bearing (Ball bearing)	£6.36 £5.30
11	HV597 79 56-01 Available to backorder	Ball Bearing (Tube 50pcs)	£296.34 £246.95
12	HV531 34 42-01 Available to backorder	Wheel (Tire)	£15.94 £13.28
15	HV531 34 44-01 Available to backorder	Wheel (Wheel outside)	£8.86 £7.38
16	HV575 54 33-14 In stock	Screw (Screw)	£1.54 £1.28
17	HV581 62 13-07 Available to backorder	Motor Kit (Wheel motor Up to S.N 235005754)	£203.40 £169.50
17	HV599 65 93-02 Available to backorder	Wheel Motor Assy (Wheel motor from S.N 235005755)	£219.73 £183.11
18	HV574 45 01-01 Available to backorder	Screw Itxpant (Screw)	£1.82 £1.52
19	HV538 81 65-01 Available to backorder	Wheel Assy (Rear wheel)	£32.48 £27.07
23	HV580 44 39-02 Available to backorder	O-Ring (O-ring)	£3.84 £3.20
