Husqvarna 450X NERA - 970535303 - Charging Station

Description

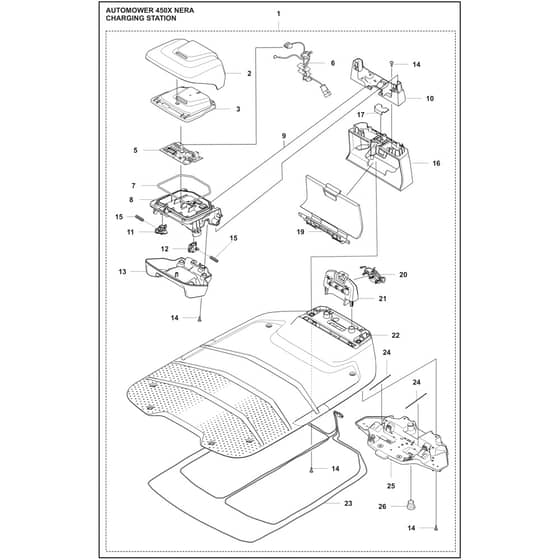

Husqvarna 450X NERA - 970535303 - Charging Station - Parts Diagram

	Part No.	Details
1	HV531 42 23-02 Available to backorder	Charging Station (Charging station)	£217.20 £181.00
2	HV531 42 25-02 Available to backorder	Cap (Upper Cover)	£39.56 £32.97
3	HV531 42 29-01 Available to backorder	Lid (Lid)	£27.17 £22.64
5	HV529 89 95-01 Available to backorder	Printed Circuit Assy (Charging station circuit board)	£141.24 £117.70
6	HV536 05 52-01 Available to backorder	Wiring Assy (Wiring Assy CS Main)	£55.51 £46.26
7	HV574 87 47-08 Available to backorder	Sealing Strip (Sealing strip)	£2.11 £1.76
8	HV531 42 30-02 Available to backorder	Frame (Frame From S.N 235003211)	£32.48 £27.07
9	HV547 11 59-01 Available to backorder	Frame (Frame kit Up to S.N 235003210)	£17.14 £14.28
10	HV535 55 86-03 Available to backorder	Support (Support From S.N 235003211)	£15.66 £13.05
11	HV531 42 26-01 Available to backorder	Flap (Contact Plate Left)	£4.74 £3.95
12	HV531 42 26-02 Available to backorder	Flap (Contact Plate Right)	£4.74 £3.95
13	HV531 42 27-01 Available to backorder	Casing (Lower Cover)	£34.24 £28.53
14	HV574 45 01-01 Available to backorder	Screw Itxpant (Screw)	£1.79 £1.49
15	HV535 13 01-01 Available to backorder	Spring (Spring)	£3.06 £2.55
16	HV531 42 24-01 Available to backorder	Housing (Housing)	£51.97 £43.31
17	HV536 17 72-01 Available to backorder	Lid (Lid)	£5.54 £4.62
19	HV531 42 28-02 Available to backorder	Hatch (Hatch)	£34.88 £29.07
20	HV535 60 07-01 Available to backorder	Wiring Assy (Wiring Assy Antenna bridge)	£62.28 £51.90
21	HV535 60 06-01 Available to backorder	Housing (Cable Holder)	£10.63 £8.86
22	HV531 42 31-02 Available to backorder	Baseplate (Charging Station Baseplate)	£124.92 £104.10
23	HV536 16 60-01 Available to backorder	Wiring Assy (Wiring Assy Baseplate)	£43.45 £36.21
24	HV588 47 02-01 Available to backorder	Spring (Spring)	£2.60 £2.17
25	HV535 60 05-01 Available to backorder	Anchor Plate (Baseplate Support)	£13.28 £11.07
26	HV531 26 27-01 Available to backorder	Plug (Plug)	£4.84 £4.03
