Husqvarna 450S - 970702618 - Chain Brake And Clutch Cover

Name: Husqvarna 450S - 970702618 - Chain Brake And Clutch Cover
SKU: 450S_970702618_ZY_569040-group
Price: 0.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 450S - 970702618 - Chain Brake And Clutch Cover

Description

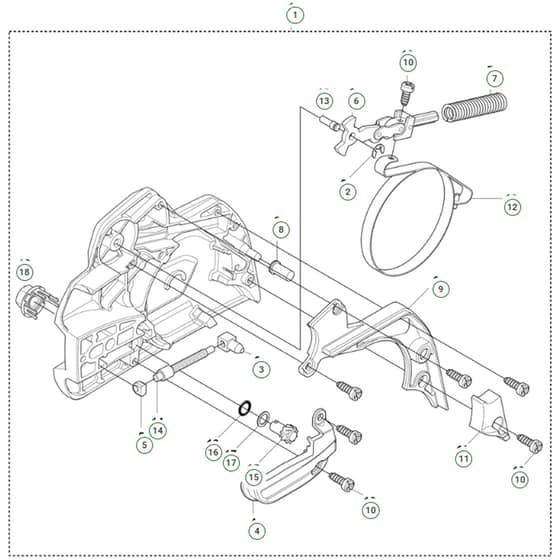

Husqvarna 450S - 970702618 - Chain Brake And Clutch Cover - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV538 82 65-01 Available to backorder	Clutch Cover Assy	£87.42 £72.85
2	HV735 31 08-20 Available to backorder	E-Clip	£0.86 £0.72
3	HV537 28 66-01 Available to backorder	Pawl	£6.46 £5.38
4	HV540 06 33-01 Available to backorder	Chain Guide	£5.56 £4.63
5	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.56 £4.63
6	HV503 89 08-02 Available to backorder	Knee Joint Assy	£26.96 £22.47
7	HV503 46 59-01 Available to backorder	Brake Spring	£5.68 £4.73
8	HV503 85 52-01 Available to backorder	Guide Bushing	£5.68 £4.73
9	HV544 08 29-01 Available to backorder	Cover Lid	£10.36 £8.63
10	HV526 22 18-01 Available to backorder	Screw Citxpant	£1.22 £1.02
11	HV544 08 30-01 Available to backorder	Wear Protection	£7.76 £6.47
12	HV537 04 30-03 In stock	Brake Band Assy	£13.92 £11.60
13	HV503 89 29-01 Available to backorder	Pin	£1.42 £1.18
14	HV537 39 70-01 Available to backorder	Worm Screw	£11.94 £9.95
15	HV537 07 94-02 Available to backorder	Worm Wheel	£12.96 £10.80
16	HV740 48 07-02 Available to backorder	O-Ring	£3.84 £3.20
17	HV503 23 00-63 Available to backorder	Washer	£2.34 £1.95
18	HV505 19 73-01 In stock	Nut	£4.30 £3.58
