Husqvarna 450II - Fuel Tank

Husqvarna 450II - Fuel Tank

Part No. 450ii_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 450II - Fuel Tank

Husqvarna 450II - Fuel Tank

Description

Husqvarna 450II

Model Year -

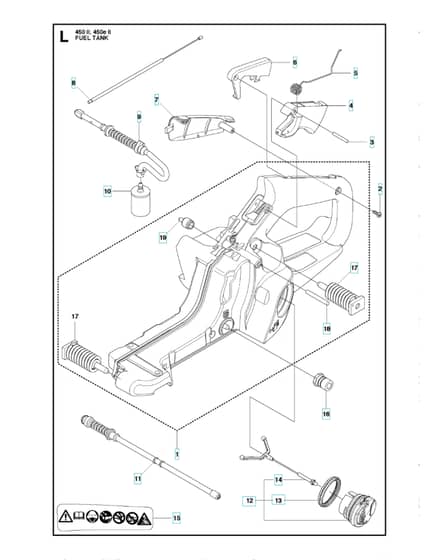

Fuel Tank - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.32 £1.10
	3		HV720 18 25-20 Available to backorder	Parallel Pin		£1.56 £1.30
	4		HV544 09 97-01 Available to backorder	Throttle Trigger		£6.58 £5.48
	5		HV544 09 99-01 Available to backorder	Spring		£3.52 £2.93
	6		HV544 09 98-01 Available to backorder	Throttle Lockout		£7.06 £5.88
	7		HV504 12 22-01 Available to backorder	Handle Insert		£7.06 £5.88
	8		HV504 09 88-01 Available to backorder	Throttle Cable Assy		£9.62 £8.02
	9		HV544 12 86-04 Available to backorder	Fuel Hose		£9.54 £7.95
	10		HV503 44 32-01 In stock	Fuel Filter		£3.94 £3.28
	11		HV577 53 51-01 In stock	Return Hose		£14.41 £12.01
	12		HV522 62 00-01 Available to backorder	Tank Cap Assy		£8.68 £7.23
	13		HV537 21 50-01 Available to backorder	Gasket		£5.32 £4.43
	14		HV503 57 89-01 Available to backorder	Holder		£5.42 £4.52
	15		HV544 37 50-01 Available to backorder	Label		£3.32 £2.77
	16		HV501 00 76-01 Available to backorder	Support		£1.94 £1.62
	17		HV544 10 12-01 Available to backorder	Antivibration Element		£19.24 £16.03
	19		HV501 15 29-01 In stock	Tank Vent Assy		£17.90 £14.92

Description

Husqvarna 450II

Model Year -

Fuel Tank - Parts Diagram
