Husqvarna 450E-SERIESJUBILEE - Chain Brake & Clutch Cover

Description

Husqvarna 450E-SERIESJUBILEE

Model Year -

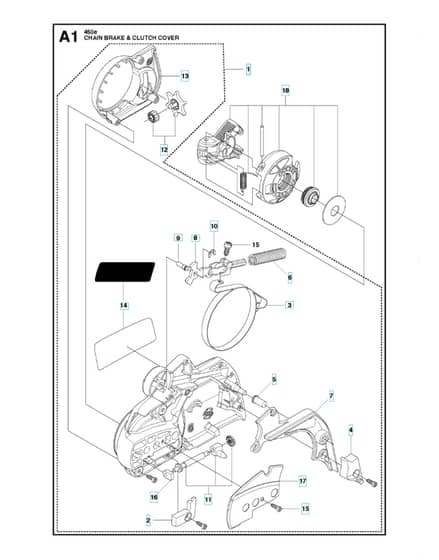

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
2	HV504 54 28-01 Available to backorder	Cover Lid	£4.08 £3.40
3	HV537 04 30-03 In stock	Brake Band Assy	£11.92 £9.93
4	HV544 08 30-01 Available to backorder	Wear Protection	£7.70 £6.42
5	HV503 85 52-01 Available to backorder	Guide Bushing	£5.75 £4.79
6	HV503 46 59-01 Available to backorder	Brake Spring	£5.57 £4.64
7	HV544 08 29-01 Available to backorder	Cover Lid	£10.26 £8.55
8	HV503 89 08-02 Available to backorder	Knee Joint Assy	£27.20 £22.67
9	HV503 89 29-01 Available to backorder	Pin	£1.46 £1.22
10	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
11	HV537 39 29-01 Available to backorder	Screw	£6.17 £5.14
12	HV537 34 72-01 Available to backorder	Gear Assy	£10.68 £8.90
13	HV537 39 26-01 Available to backorder	Heat Protector	£12.82 £10.68
14	HV544 35 75-01 Available to backorder	Label	£2.83 £2.36
15	HV503 21 70-10 Available to backorder	Screw Ccrpant	£1.61 £1.34
16	HV525 35 43-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
17	HV544 25 05-01 In stock	Wear Plate	Was £6.08 £5.07 Special Price £4.19 £3.49
18	HV537 34 78-01 Available to backorder	Knob	£25.76 £21.47
