Husqvarna 445II - Chain Brake & Clutch Cover 2

Name: Husqvarna 445II - Chain Brake & Clutch Cover 2
SKU: 445ii_chain_brake_clutch_cover_2-group
Price: 0.65 GBP
Availability: InStock

Part No. 445ii_chain_brake_clutch_cover_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 445II - Chain Brake & Clutch Cover 2

Description

Husqvarna 445II

Model Year -

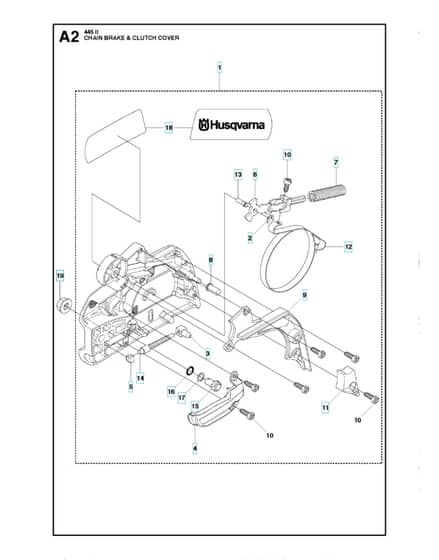

Chain Brake & Clutch Cover 2 - Parts Diagram

	Part No.	Details
1	HV544 09 79-01 Available to backorder	Clutch Cover Assy	£64.32 £53.60
2	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
3	HV537 28 66-01 Available to backorder	Pawl	£6.40 £5.33
4	HV540 06 33-01 Available to backorder	Chain Guide	£5.51 £4.59
5	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.75 £4.79
6	HV503 89 08-02 Available to backorder	Knee Joint Assy	£27.20 £22.67
7	HV503 46 59-01 Available to backorder	Brake Spring	£5.57 £4.64
8	HV503 85 52-01 Available to backorder	Guide Bushing	£5.75 £4.79
9	HV544 08 29-01 Available to backorder	Cover Lid	£10.26 £8.55
10	HV503 21 70-10 Available to backorder	Screw Ccrpant	£1.61 £1.34
11	HV544 08 30-01 Available to backorder	Wear Protection	£7.70 £6.42
12	HV537 04 30-03 In stock	Brake Band Assy	£11.92 £9.93
13	HV503 89 29-01 Available to backorder	Pin	£1.46 £1.22
14	HV537 39 70-01 Available to backorder	Worm Screw	£12.66 £10.55
15	HV537 07 94-02 Available to backorder	Worm Wheel	£12.84 £10.70
16	HV740 48 07-02 Available to backorder	O-Ring	£3.82 £3.18
17	HV503 23 00-63 Available to backorder	Washer	£2.30 £1.92
18	HV544 37 68-01 Available to backorder	Label	£3.07 £2.56
19	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
