Husqvarna 440II - Chain Brake & Clutch Cover 2

Name: Husqvarna 440II - Chain Brake & Clutch Cover 2
SKU: 440ii_chain_brake_clutch_cover_2-group
Price: 0.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 440II - Chain Brake & Clutch Cover 2

Description

Husqvarna 440II

Model Year -

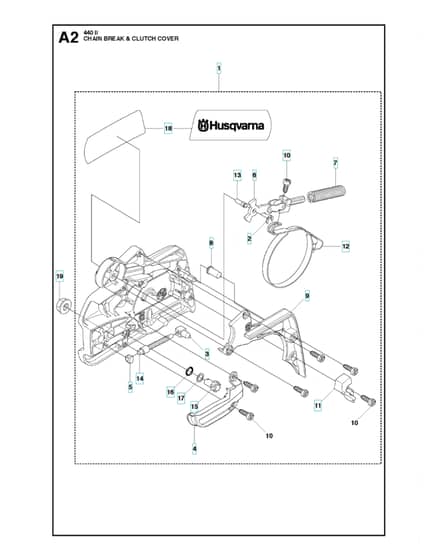

Chain Brake & Clutch Cover 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV735 31 08-20 Available to backorder	E-Clip	£0.86 £0.72
3	HV537 28 66-01 Available to backorder	Pawl	£6.46 £5.38
4	HV540 06 33-01 Available to backorder	Chain Guide	£5.56 £4.63
5	HV537 01 74-01 Available to backorder	Bearing Sleeve	£5.56 £4.63
6	HV503 89 08-02 Available to backorder	Knee Joint Assy	£26.96 £22.47
7	HV505 89 26-01 Available to backorder	Brake Spring	£5.04 £4.20
8	HV503 85 52-01 Available to backorder	Guide Bushing	£5.68 £4.73
9	HV544 24 85-01 Available to backorder	Cover Lid	£3.88 £3.23
10	HV503 21 70-10 Available to backorder	Screw Ccrpant	£1.56 £1.30
11	HV544 25 31-01 Available to backorder	Wear Protection	£6.20 £5.17
12	HV544 30 60-03 Available to backorder	Brake Band Assy	£11.40 £9.50
13	HV503 89 29-01 Available to backorder	Pin	£1.42 £1.18
14	HV537 39 70-01 Available to backorder	Worm Screw	£11.94 £9.95
15	HV537 07 94-02 Available to backorder	Worm Wheel	£12.96 £10.80
16	HV740 48 07-02 Available to backorder	O-Ring	£3.84 £3.20
17	HV503 23 00-63 Available to backorder	Washer	£2.34 £1.95
18	HV544 37 68-01 Available to backorder	Label	£3.12 £2.60
19	HV503 22 00-01 In stock	Hexagon Nut	£2.65 £2.21
