Husqvarna 435X AWD NERA - 970745203 - Charging Station

Description

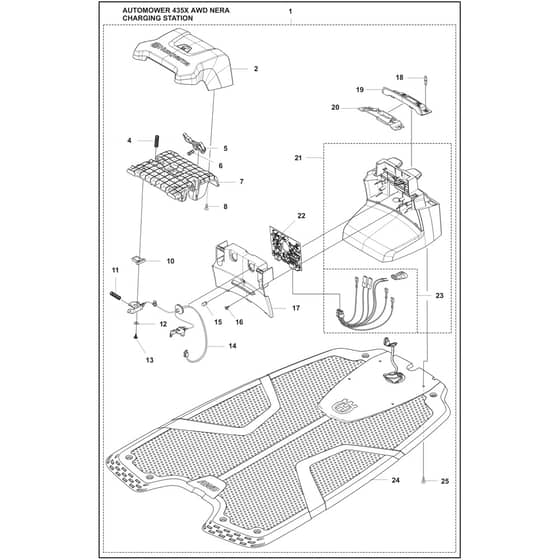

Husqvarna 435X AWD NERA - 970745203 - Charging Station - Parts Diagram

	Part No.	Details
1	HV595 31 01-03 Available to backorder	Charging Station	£502.20 £418.50
2	HV579 44 82-03 Available to backorder	Cap	£43.57 £36.31
5	HV579 46 24-02 Available to backorder	Button (Button-Release)	£6.29 £5.24
6	HV574 48 70-01 Available to backorder	Spring	£3.79 £3.16
7	HV579 45 80-04 Available to backorder	Frame	£21.16 £17.63
10	HV579 46 05-02 Available to backorder	Spacer	£3.22 £2.68
11	HV580 51 14-01 Available to backorder	Spring	£3.46 £2.88
12	HV734 11 37-41 Available to backorder	Washer	£3.07 £2.56
14	HV531 24 22-01 Available to backorder	Wiring Assy (Loom Charging Contact)	£50.98 £42.48
15	HV590 21 72-01 Available to backorder	Lens	£6.02 £5.02
17	HV579 45 97-04 Available to backorder	Lid	£27.55 £22.96
18	HV580 50 41-01 Available to backorder	Terminal	£10.90 £9.08
19	HV579 45 98-03 Available to backorder	Panel	£11.54 £9.62
20	HV579 45 99-01 Available to backorder	Tool Holder	£9.62 £8.02
21	HV588 18 88-02 Available to backorder	Housing Assy	£43.24 £36.03
22	HV592 89 45-04 Available to backorder	Printed Circuit Assy (Charging station board)	£144.84 £120.70
23	HV588 47 89-03 Available to backorder	Cable Kit (Wiring CS)	£42.94 £35.78
24	HV595 28 36-01 Available to backorder	Base Assy (Charging Plate)	£111.96 £93.30
25	HV575 54 33-14 In stock	Screw	£1.93 £1.61
