Husqvarna 435X AWD NERA - 970745203 - Blade Motor And Cutting Equipment

Name: Husqvarna 435X AWD NERA - 970745203 - Blade Motor And Cutting Equipment
SKU: 435X_AWD_NERA_970745203_WQ_438363_Original_20file-group
Price: 0.82 GBP
Availability: InStock

Part No. 435X_AWD_NERA_970745203_WQ_438363_Original_20file-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 435X AWD NERA - 970745203 - Blade Motor And Cutting Equipment

Description

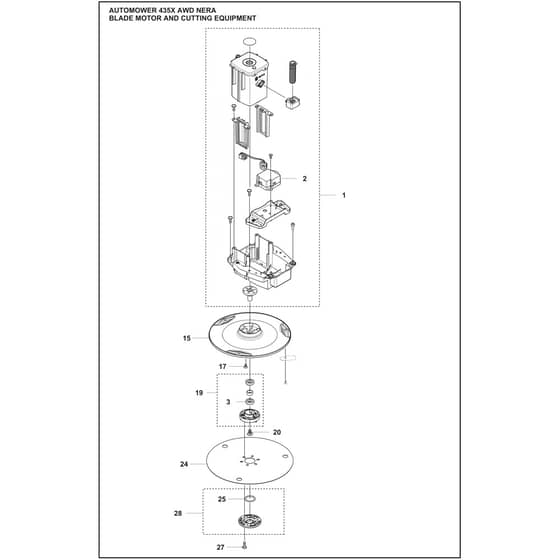

Husqvarna 435X AWD NERA - 970745203 - Blade Motor And Cutting Equipment - Parts Diagram

	Part No.	Details
1	HV592 73 37-01 Available to backorder	Cutting Module	£124.56 £103.80
2	HV592 73 58-01 Available to backorder	Height Adjustment Motor (Height adjustment)	£80.04 £66.70
3	HV535 07 57-03 Available to backorder	Ball Bearing	£6.41 £5.34
3	HV593 08 08-01 Available to backorder	Ball Bearing (Tube 50 pcs)	£282.96 £235.80
15	HV531 17 74-01 Available to backorder	Cutting Disc	£17.36 £14.47
17	HV590 50 87-01 Available to backorder	Screw	£0.98 £0.82
19	HV588 42 17-02 Available to backorder	Bearing Housing Assy	£20.89 £17.41
20	HV535 07 60-01 In stock	Screw	£1.50 £1.25
24	HV598 79 48-01 Available to backorder	Skid Plate	£20.26 £16.88
25	HV585 29 75-01 Available to backorder	O-Ring	£3.89 £3.24
27	HV575 54 33-14 In stock	Screw	£1.93 £1.61
28	HV587 44 96-01 Available to backorder	Cover Kit	£12.52 £10.43
